Sleeving

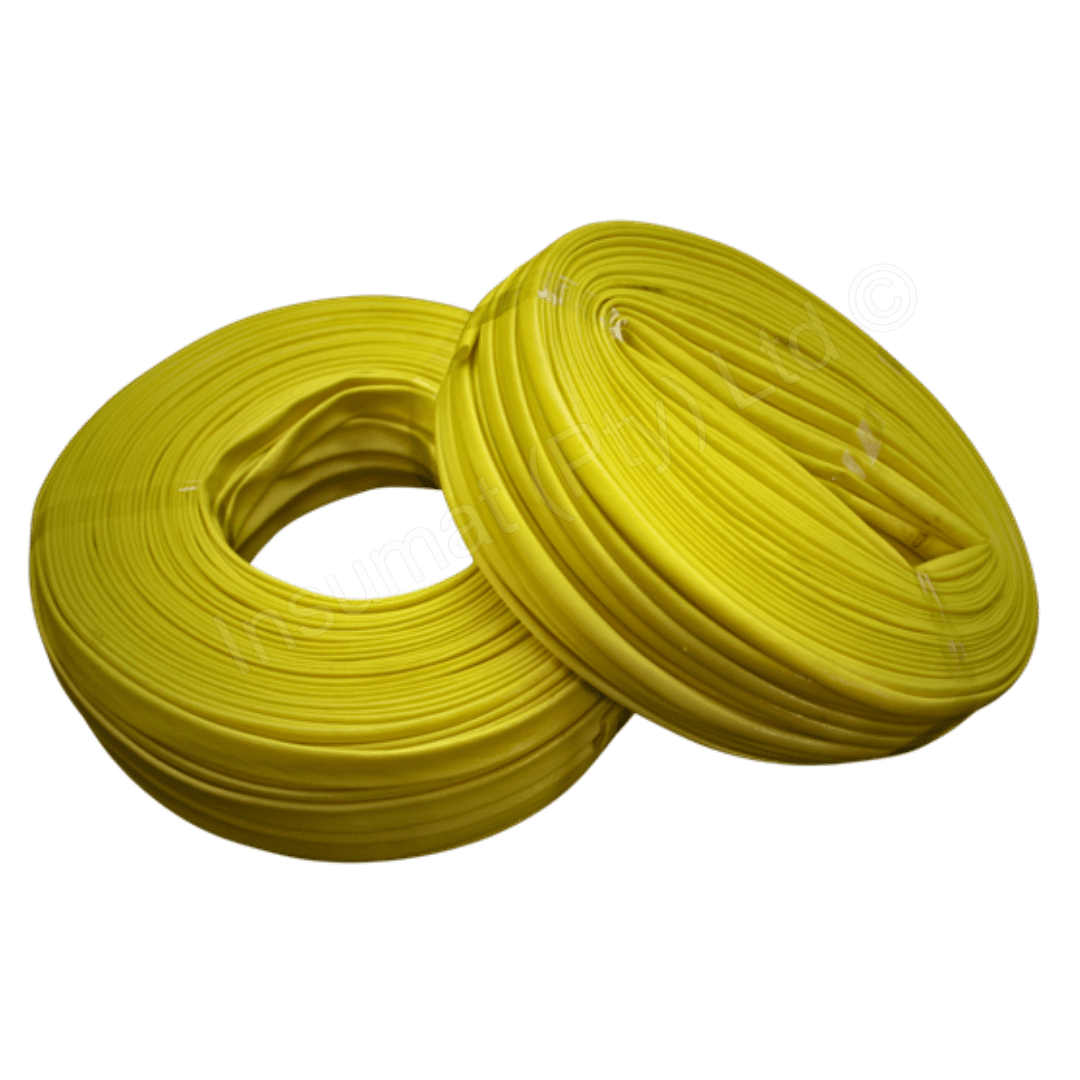

Acrylic Sleeving
- Class F - 155°C
- BDV - 2.5kV
- Sold per meter from 0.5 - 20mm in diameter
- Standard colour - yellow/black

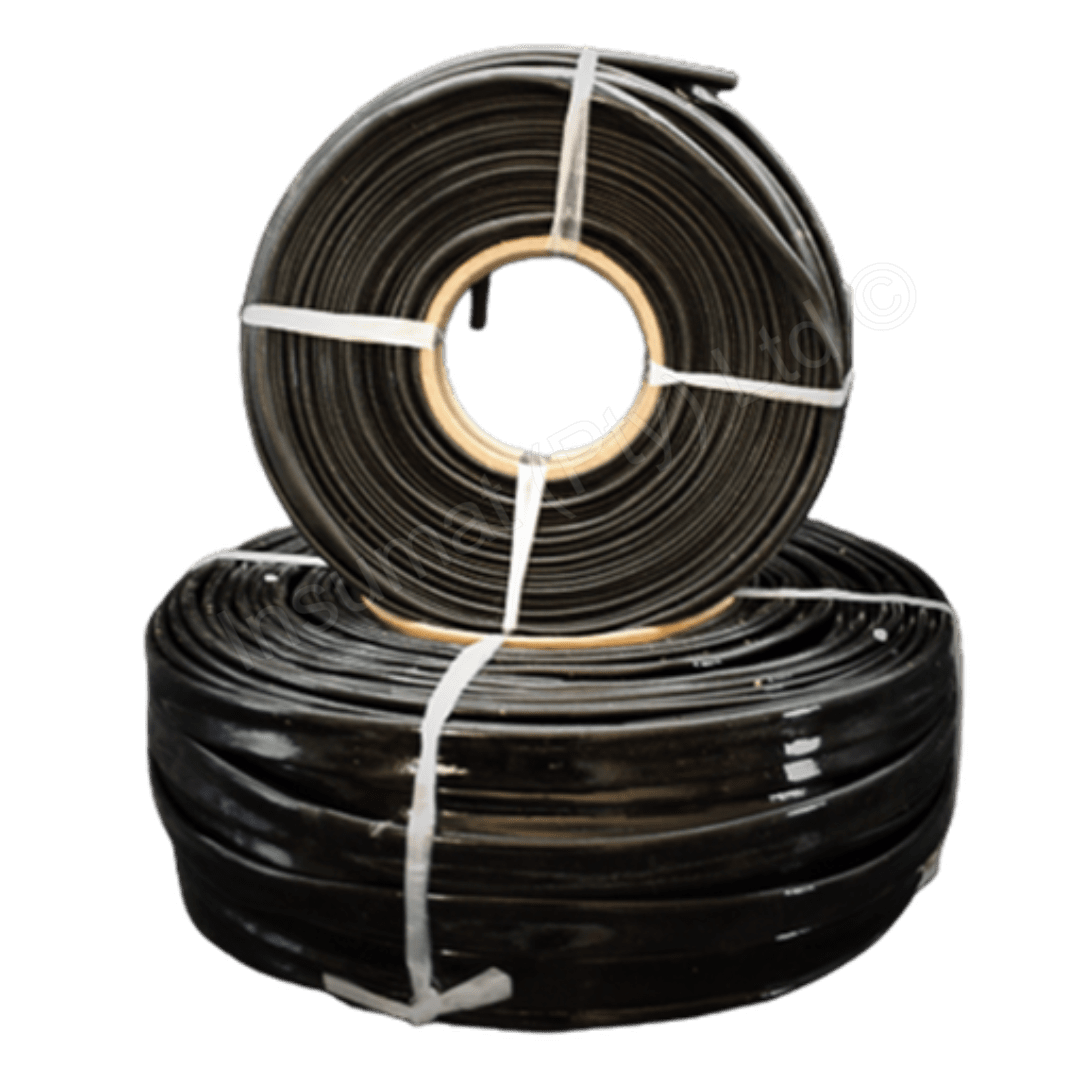

Silicone Sleeving
- Class H - 180°C
- BDV - 4kV
- Sold per meter from 0.5 - 25mm in diameter
- Standard colour - red/black/blue

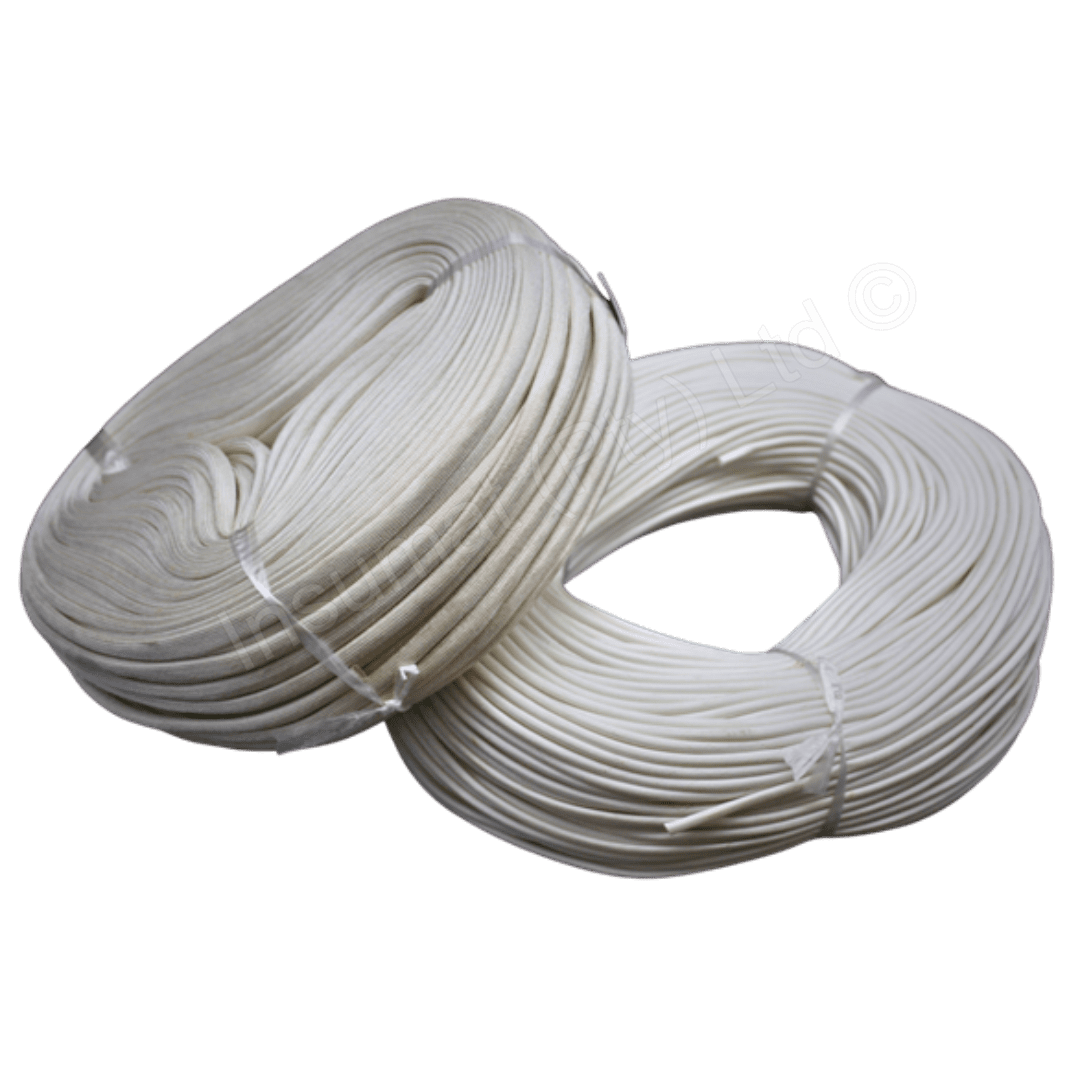

HTG Non Fray Sleeving
- Temperature withstanding - 600°C
- BDV - 600 volts
- Sold per meter from 1.0 - 12mm
- Standard colour - natural
Cable

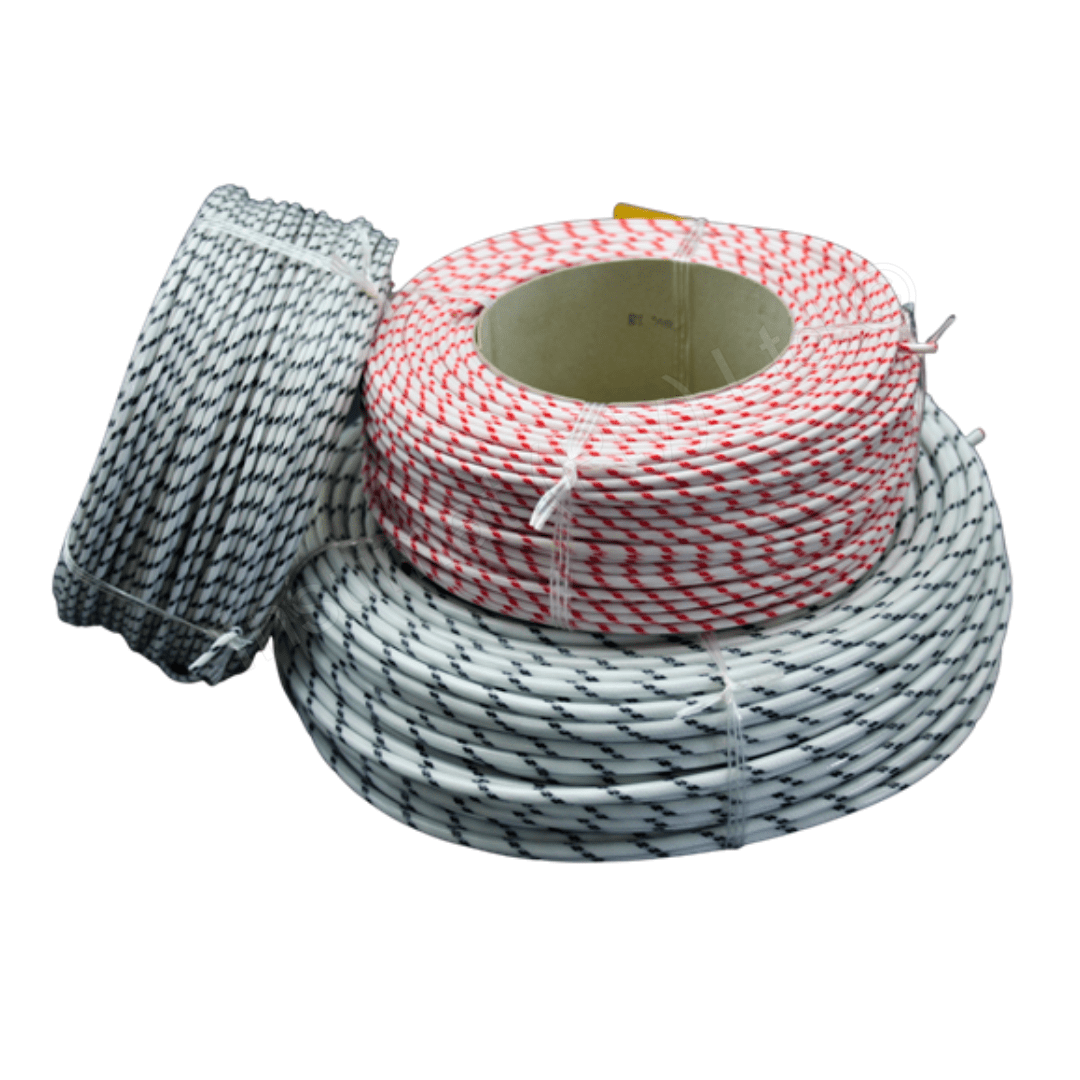

Nomex Cable
- Class F - 155°C
- BDV - 800 volts
- Sold per meter from 0.5 - 95mm
- Standard colours - red & white/black & white/white from 25mm and up

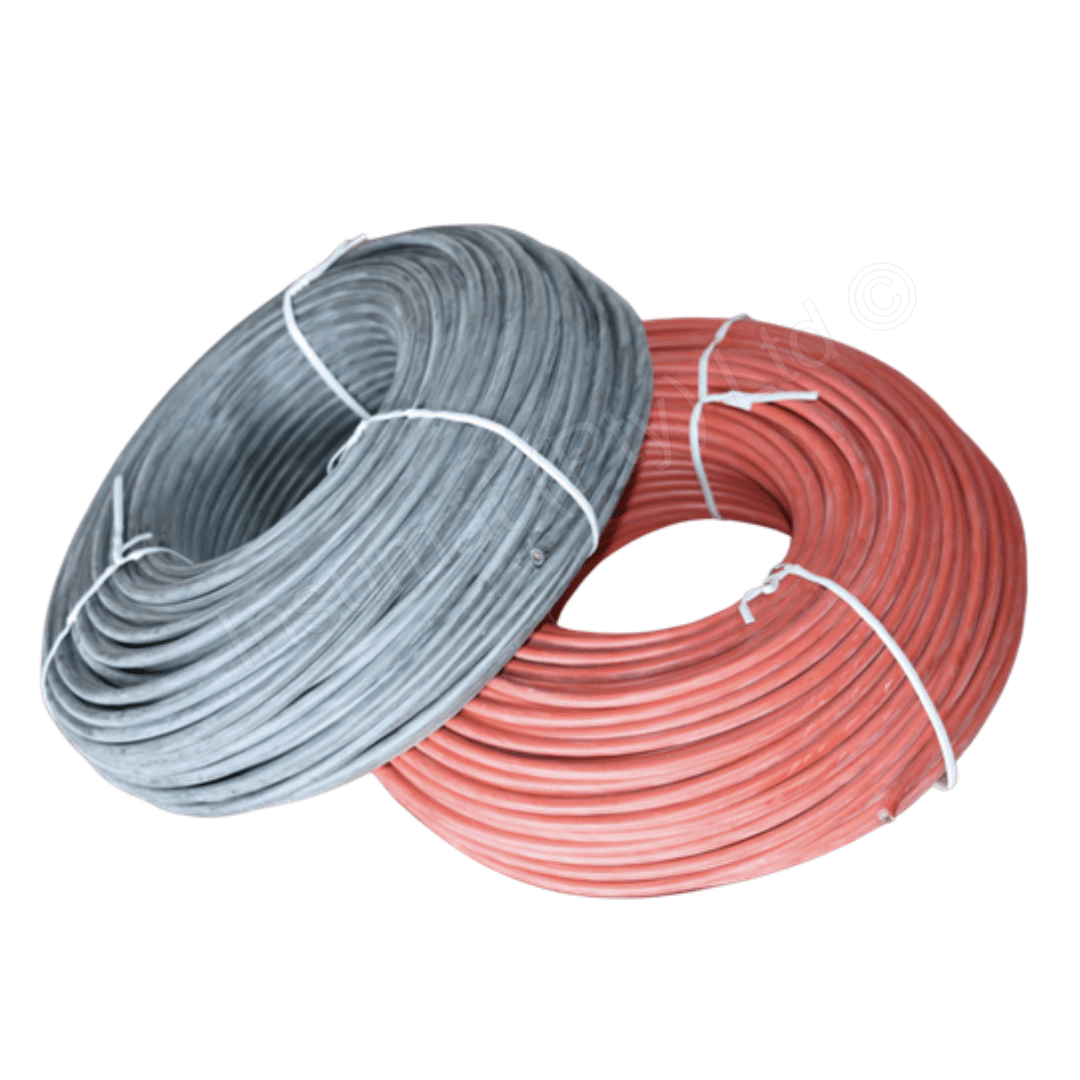

Silicone Cable
- Class H - 180°C
- BDV - 350/500 volts 0.5 - 6mm & 600 volts 10mm and up
- Sold per meter from 0.5 - 70mm
- Standard colours - red/black/blue/white/grey/brown

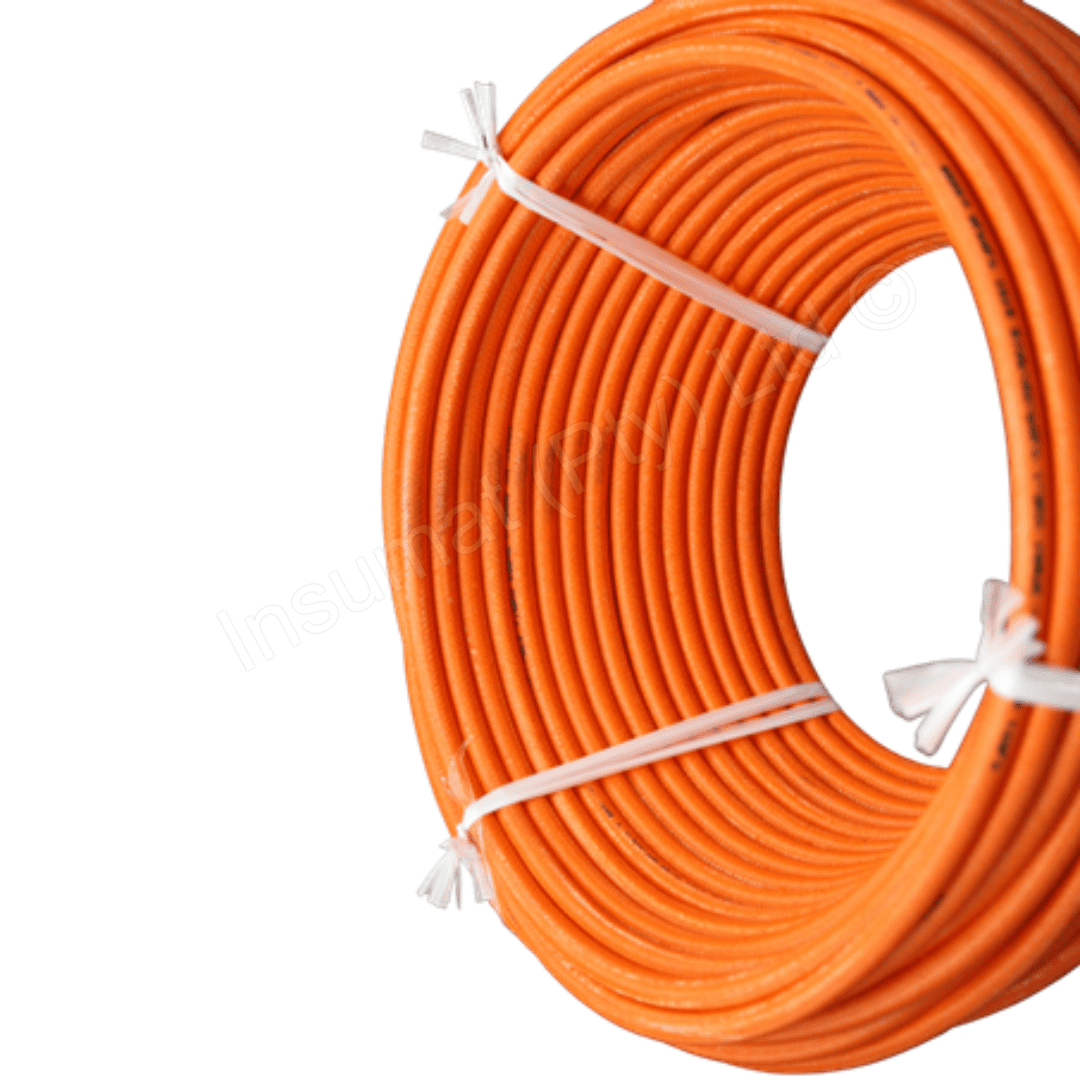

Polybraid Cable
- Class H - 180°C
- BDV - stock 1.5kV and 13.8kV
- Sold per meter from 2.5 - 95mm on 1.5kV
- Sold per meter from 25 - 95mm on 13.8kV
- Standard colours - 1.5kV is yellow/orange & 13.8kV is black
Flexible Laminates

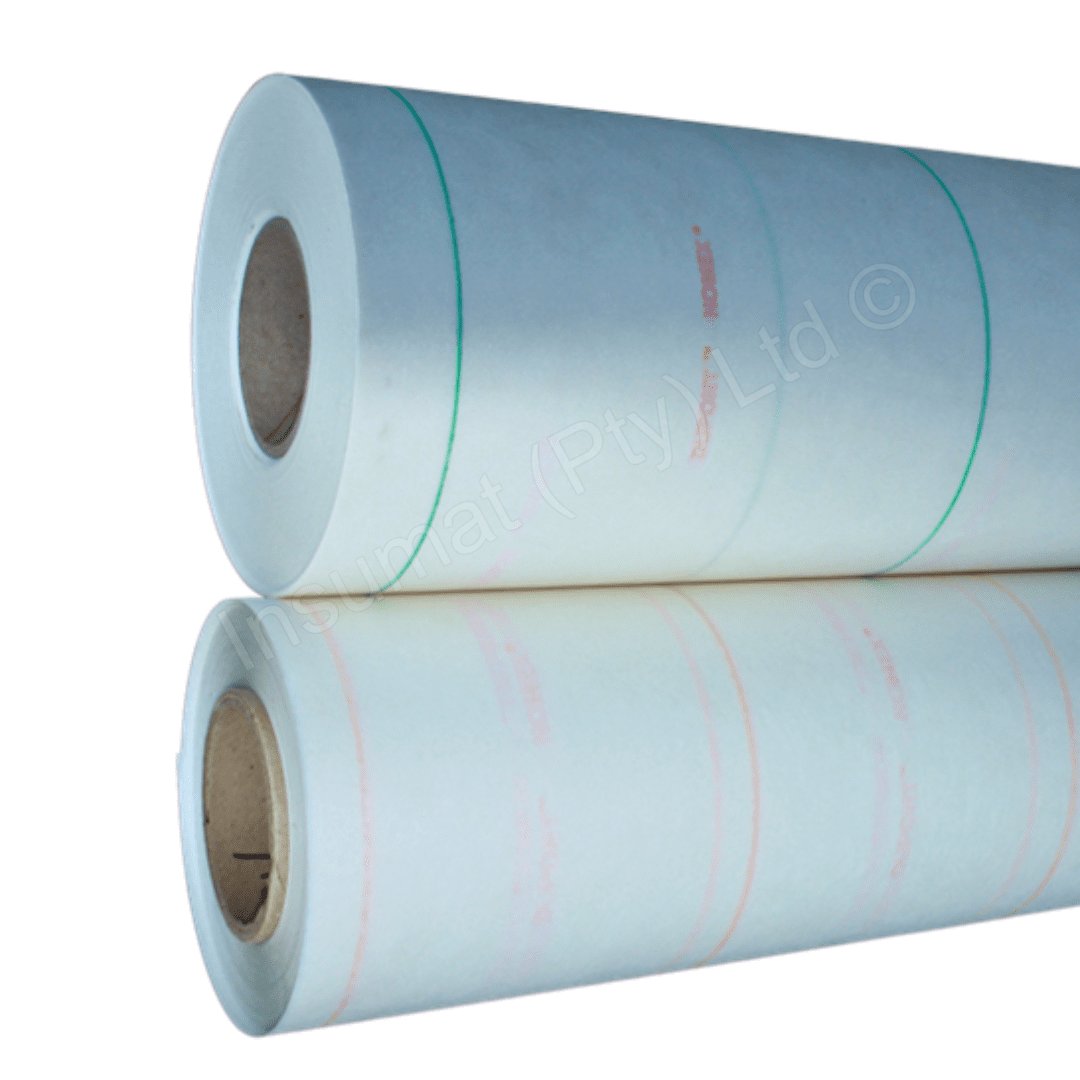

Nomex Polyester Nomex (NPN)
- Class H -180°C
- BDV - (8kV/0.15mm)(14kV/0.23mm)(18kV/0.28mm)(19kV/0.35mm)
- Sold per meter & available in 0.15/0.20/0.23/0.28/0.35/0.41mm
- Standard colour - white with orange/yellow/green line

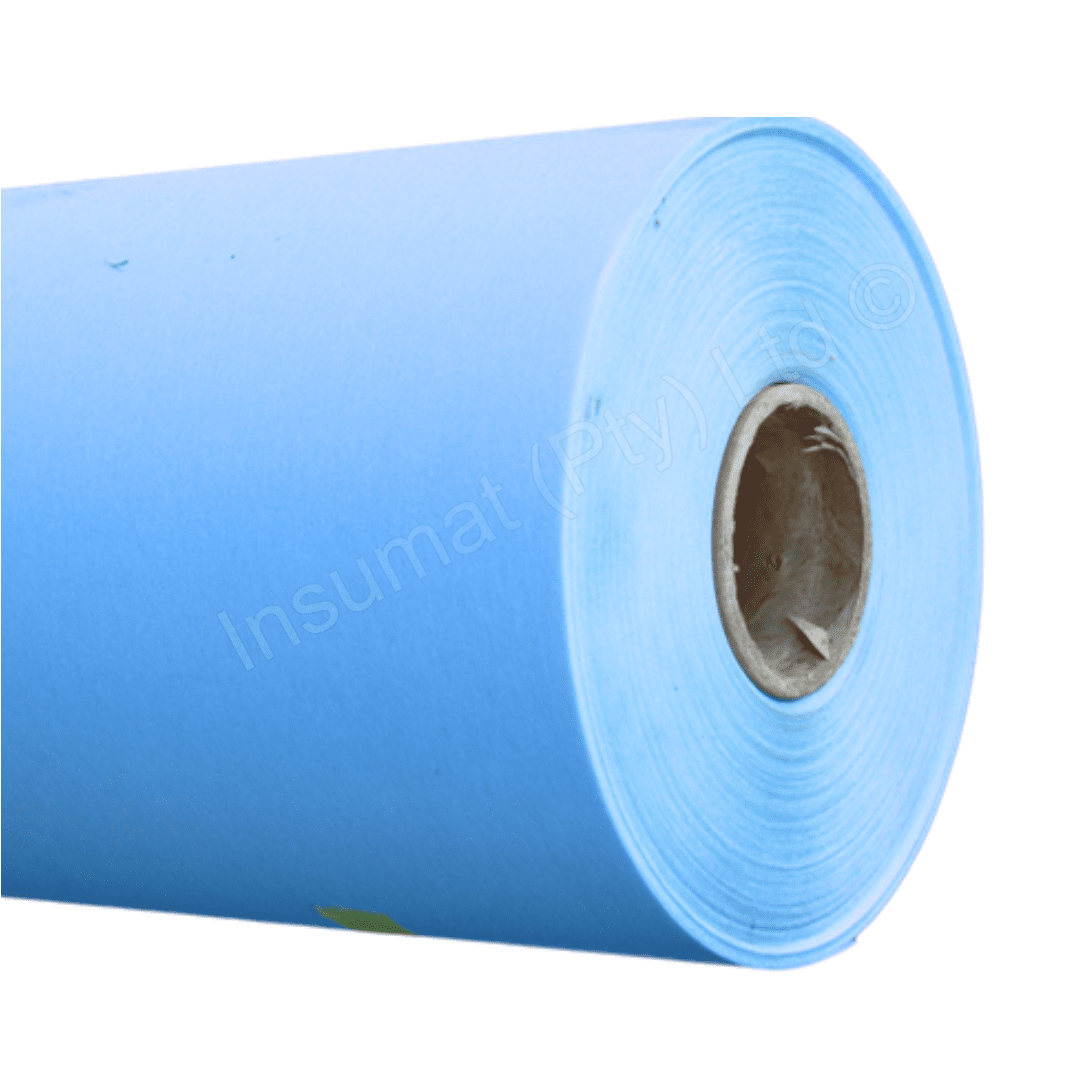

Dacron Mylar Dacron (DMD)
- Class F - 155°C
- BDV - (7kV/0.16mm)(11kV/0.23mm)(16kV/0.28mm)(19kV/0.35mm)
- Sold per meter & available in 0.16/0.23/0.28/0.35mm
- Standard colours - white/blue/pink

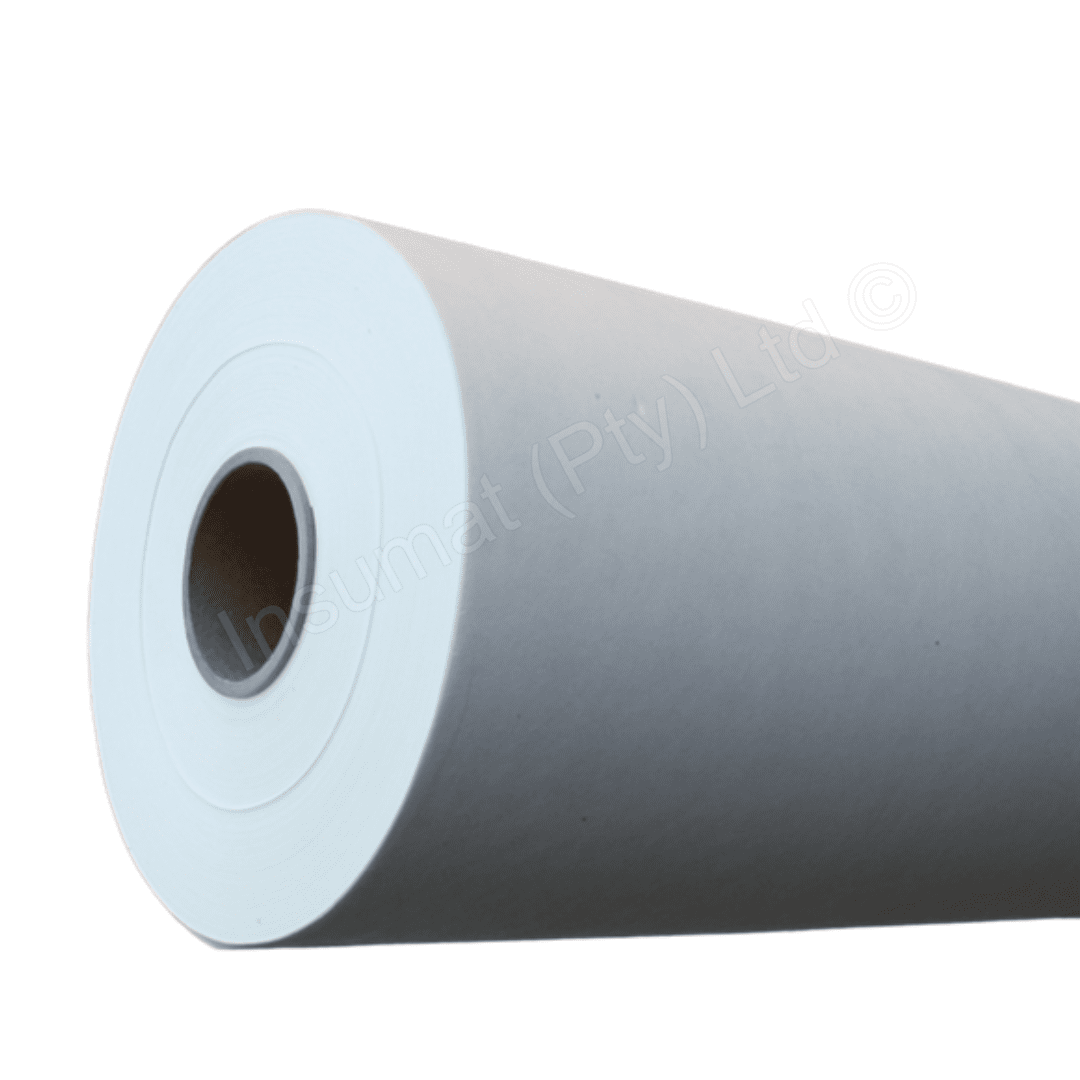

Phase Insulation
- Class F - 155°C
- BDV - 6kV
- Sold per meter & available in 0.28/0.29mm
- Standard colour - white

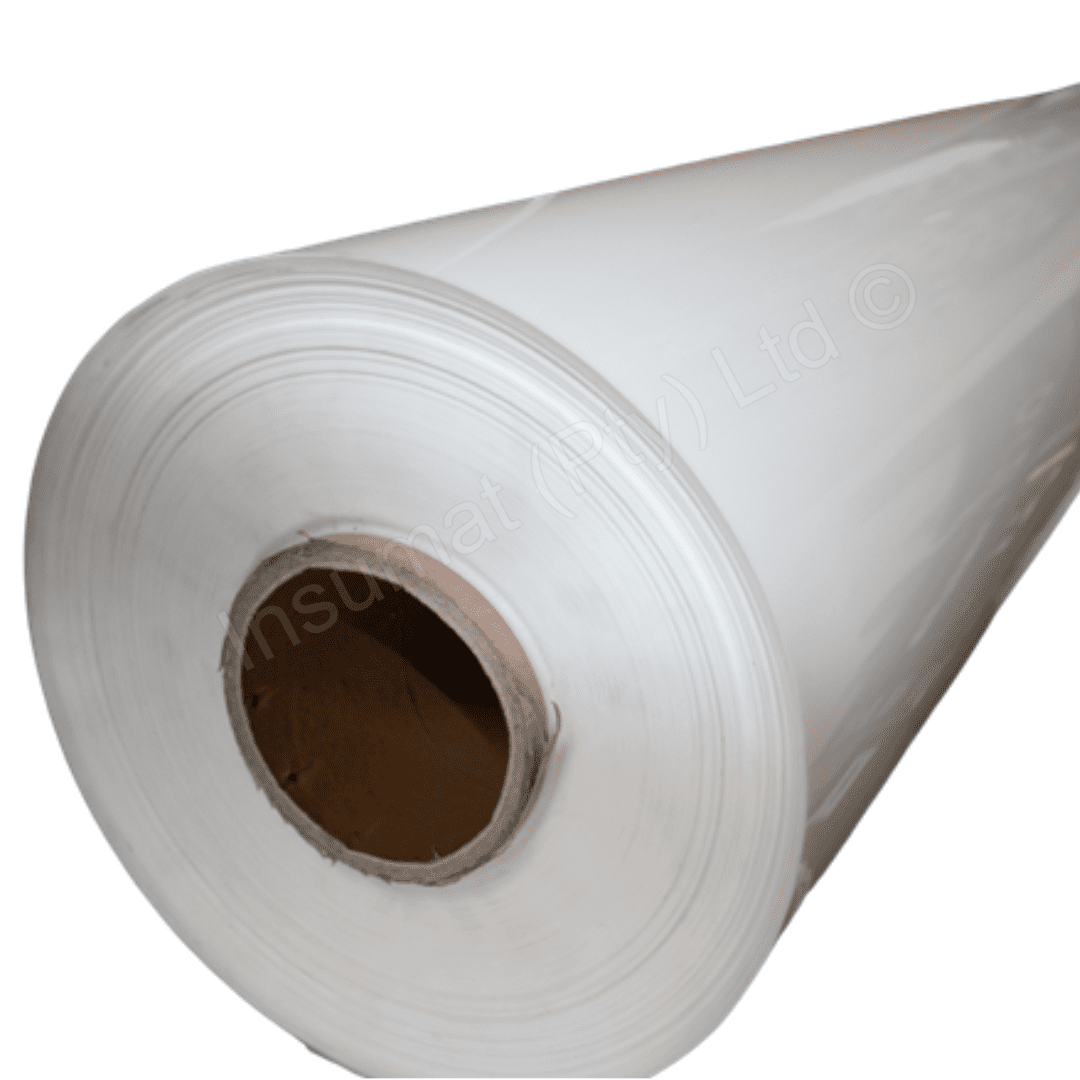

Polyester Film
- Class E - 120°C
- BDV - 20kV per mm
- Sold per kilogram & available in 0.025/0.036/0.05/0.075/0.1/0.125 0.2/0.250/0.350mm
- Standard colours - milky white/clear

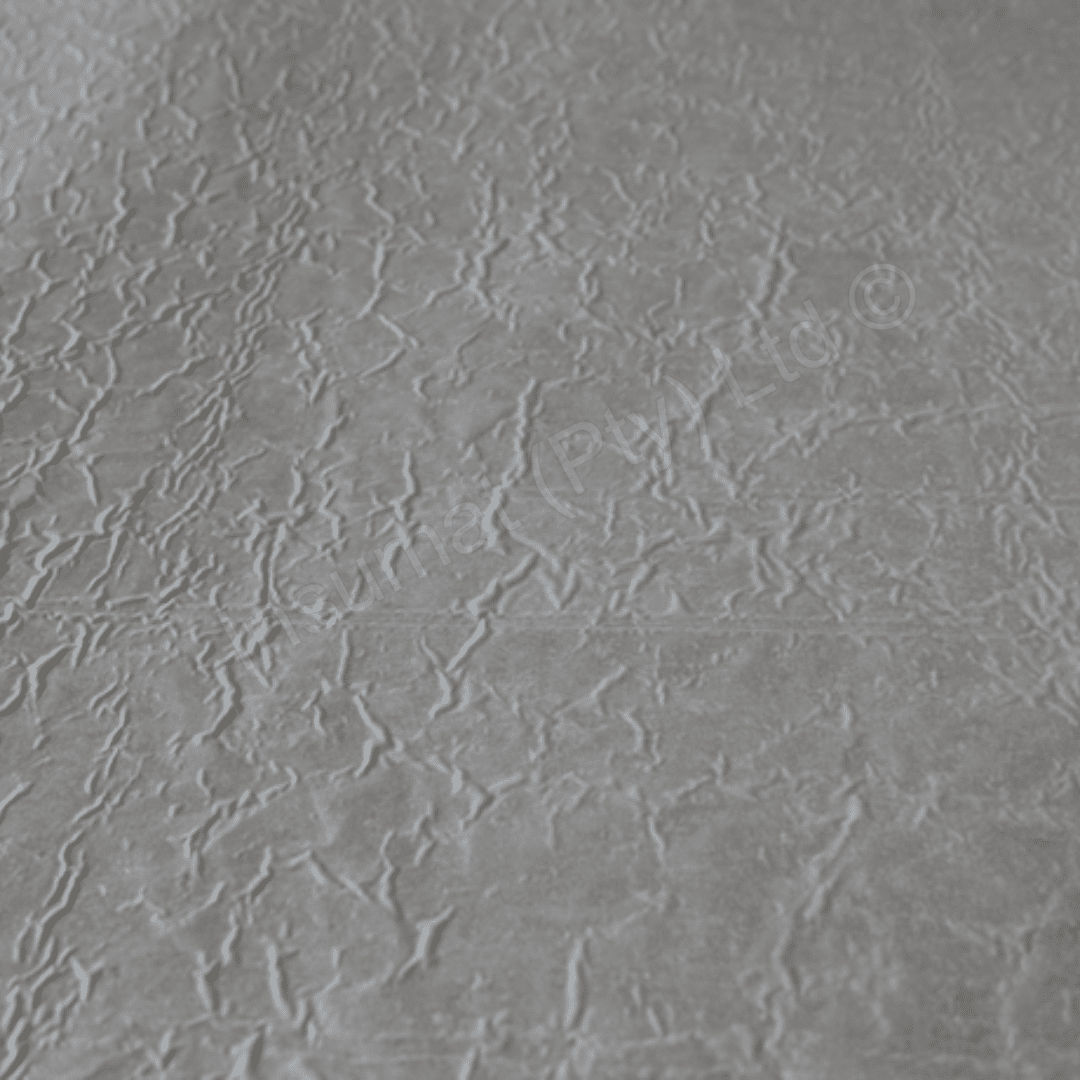

Nomex MICA Nomex
- Class F - 155°C
- BDV - varies by thickness
- Sold per sheet 900x900mm & available in 0.38/0.6/0.76mm thickness

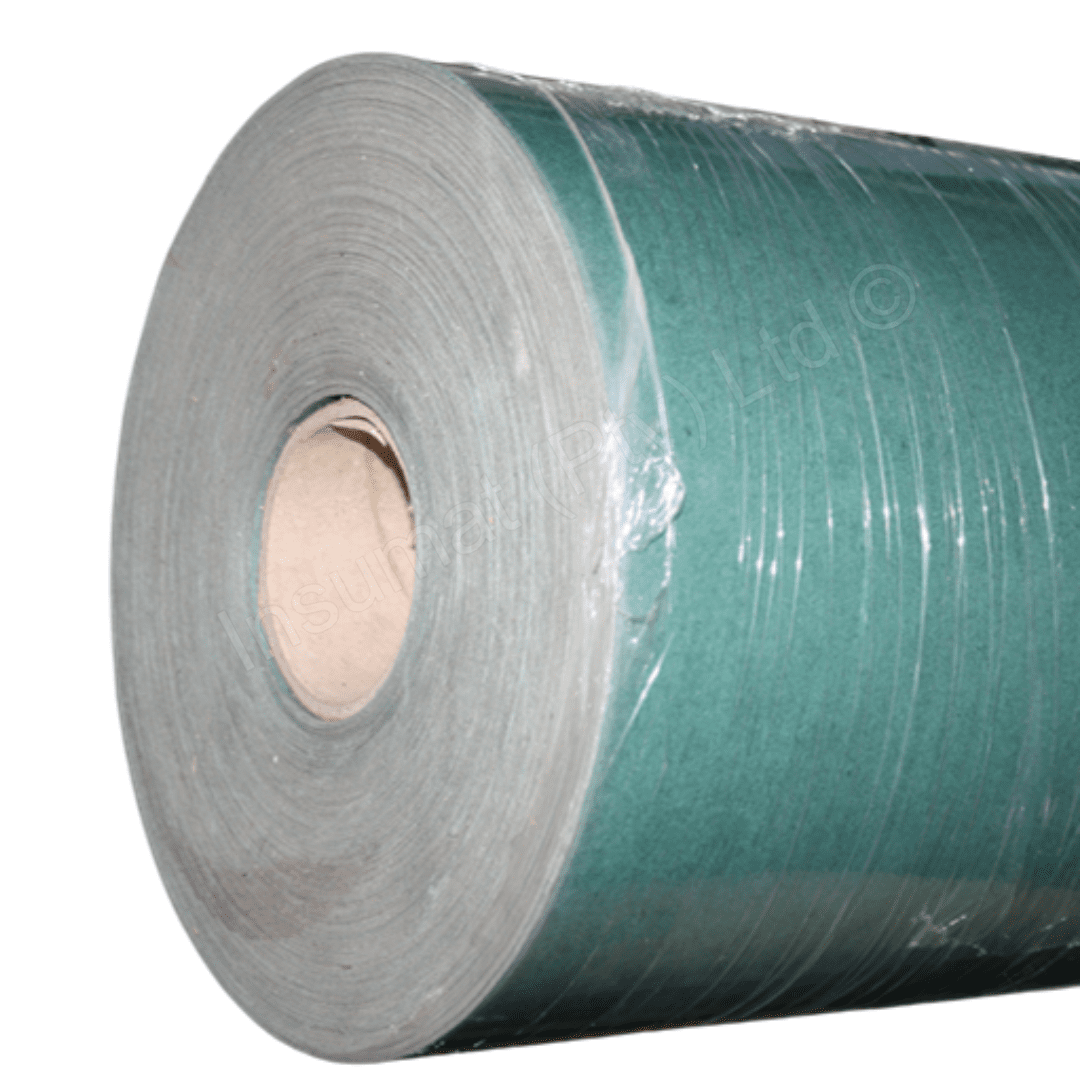

Polyesphan
- Class B - 130°C
- BDV - 7kV
- Sold per kg & available in 0.13/0.3mm
- Standard colour - green
Rigid Laminates

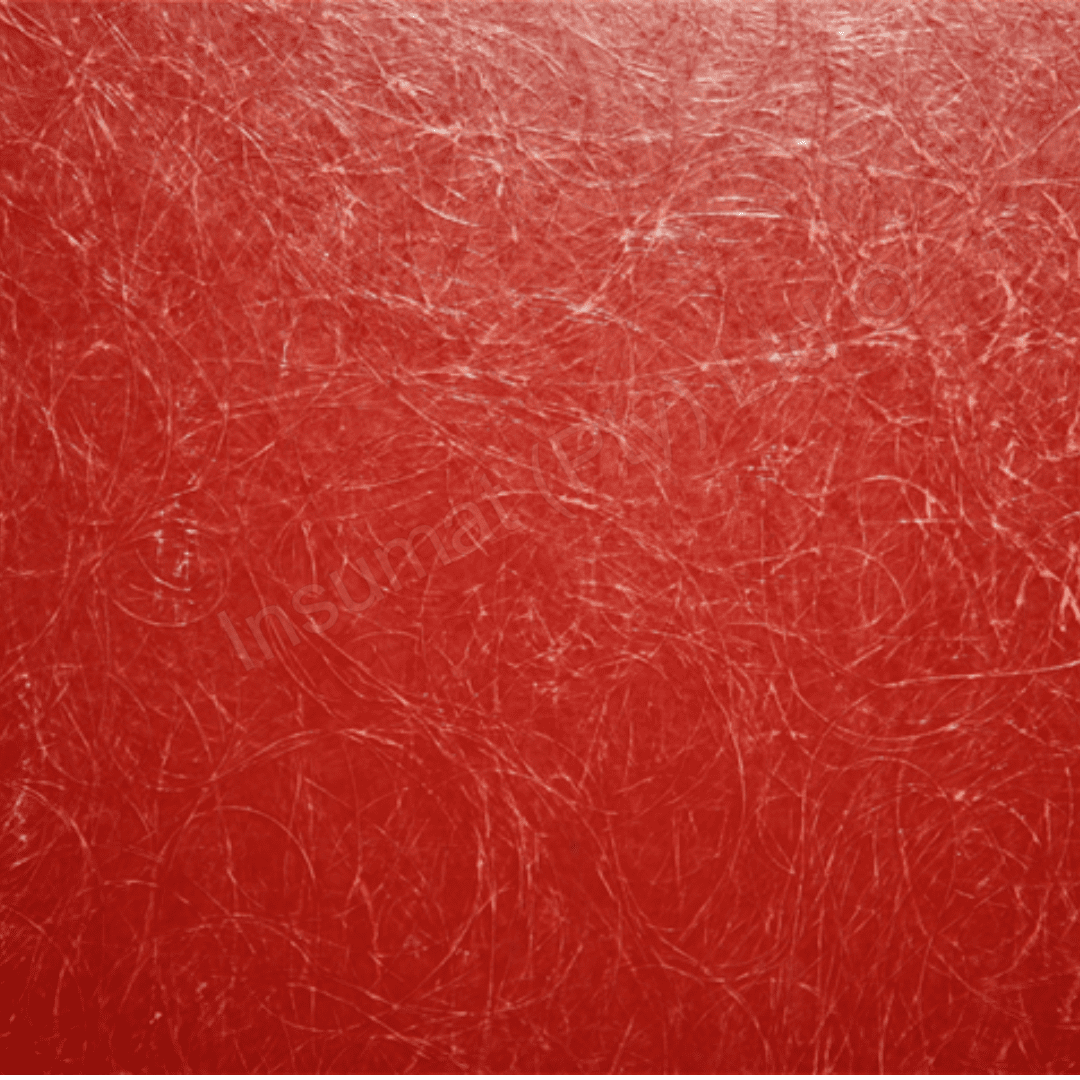

Glass Polyester (GP03)
- Class F - 155°C
- BDV - 12kV per mm
- Sold per sheet 2040x1020mm & available in 0.8/1.6/3.0/5.0mm
- Standard colour - off red

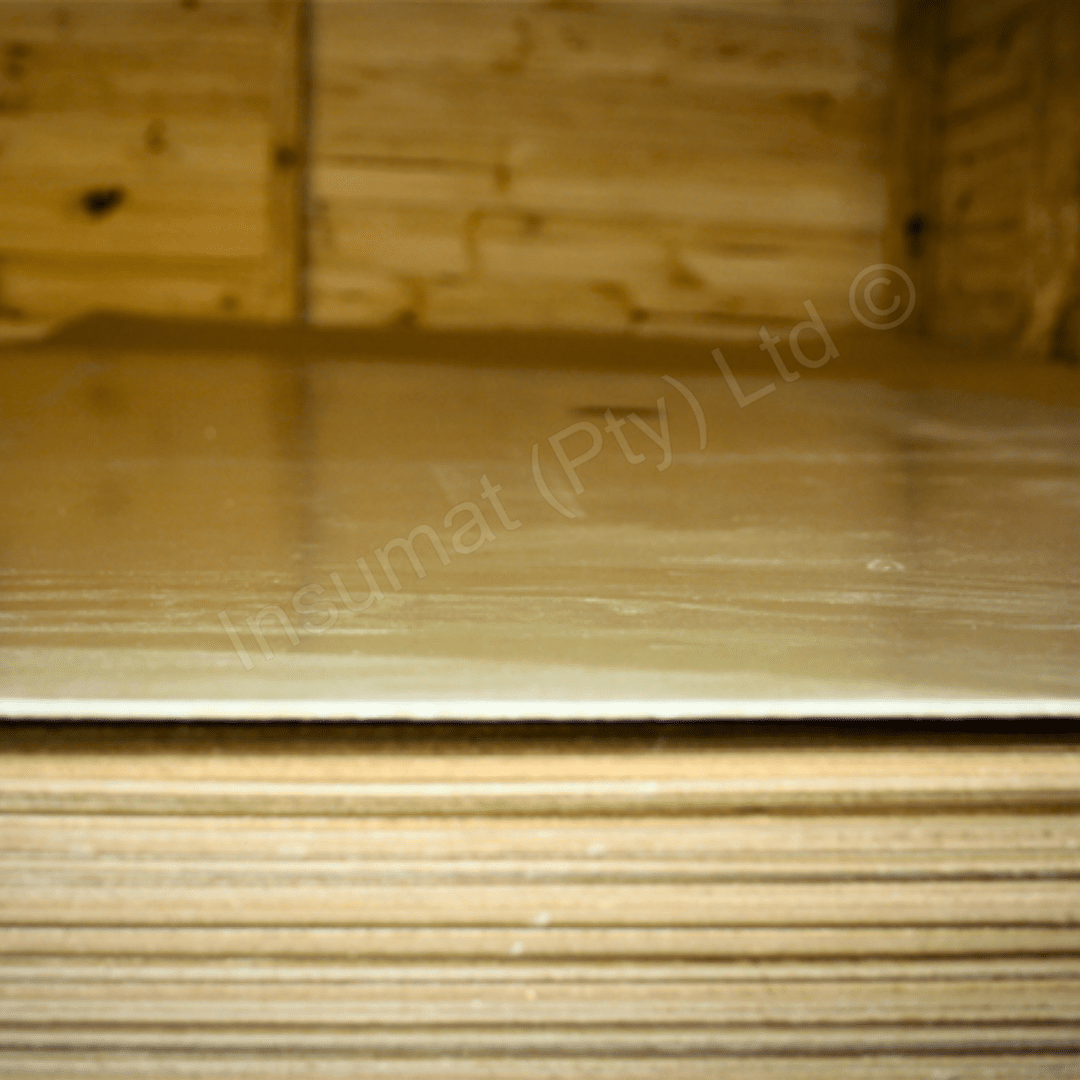

Silicone Glass
- Class C - 200°C
- BDV - varies by thickness
- Sold per sheet & available in 0.8/1.6mm
- Standard colour - tan

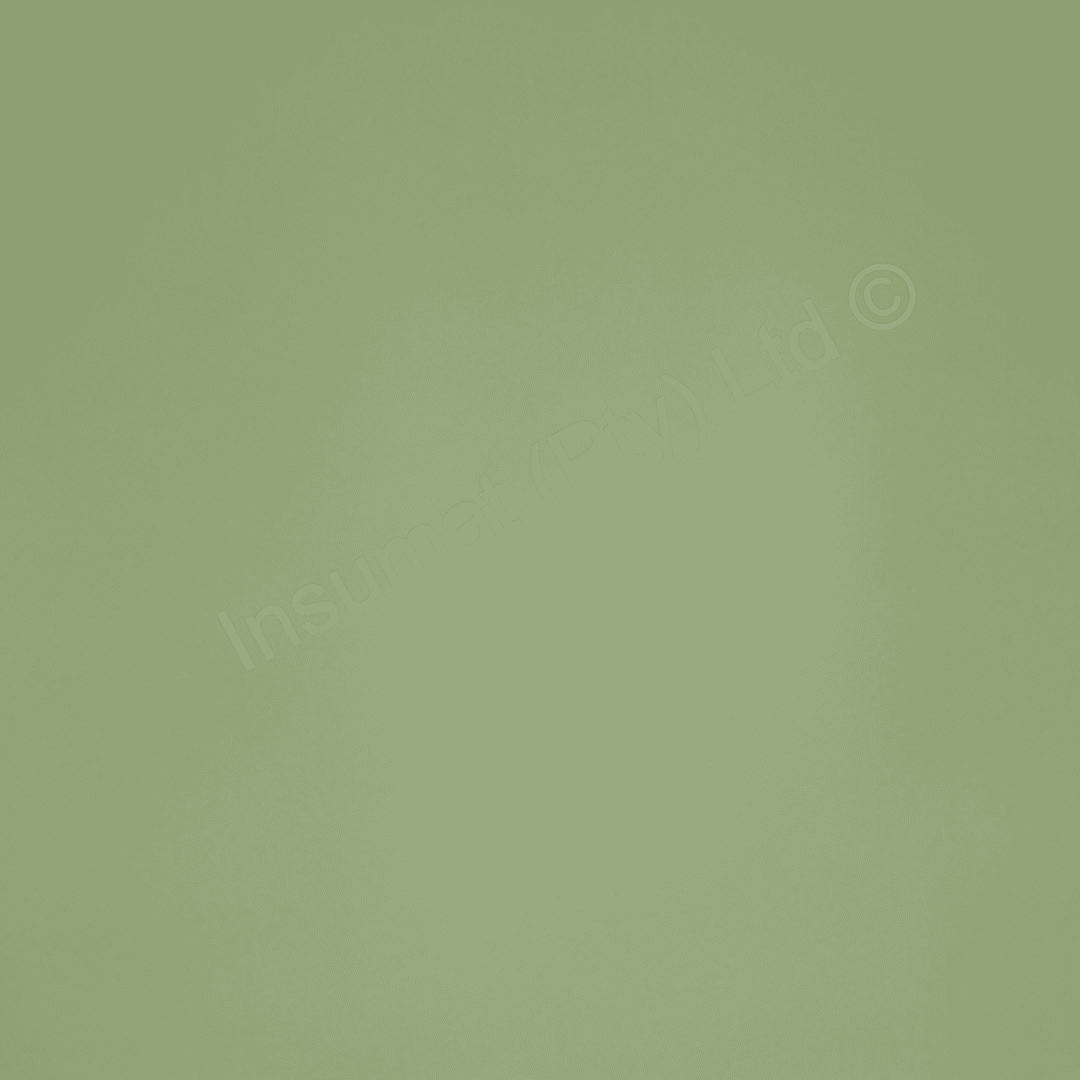

Epoxy Glass (G11)
- Class F - 160°C / Class H - 180°C
- Sold per sheet 2040x1020mm & available in 0.8/1.5/3.0/4.0/5.0/6.0mm
- Standard colour - green

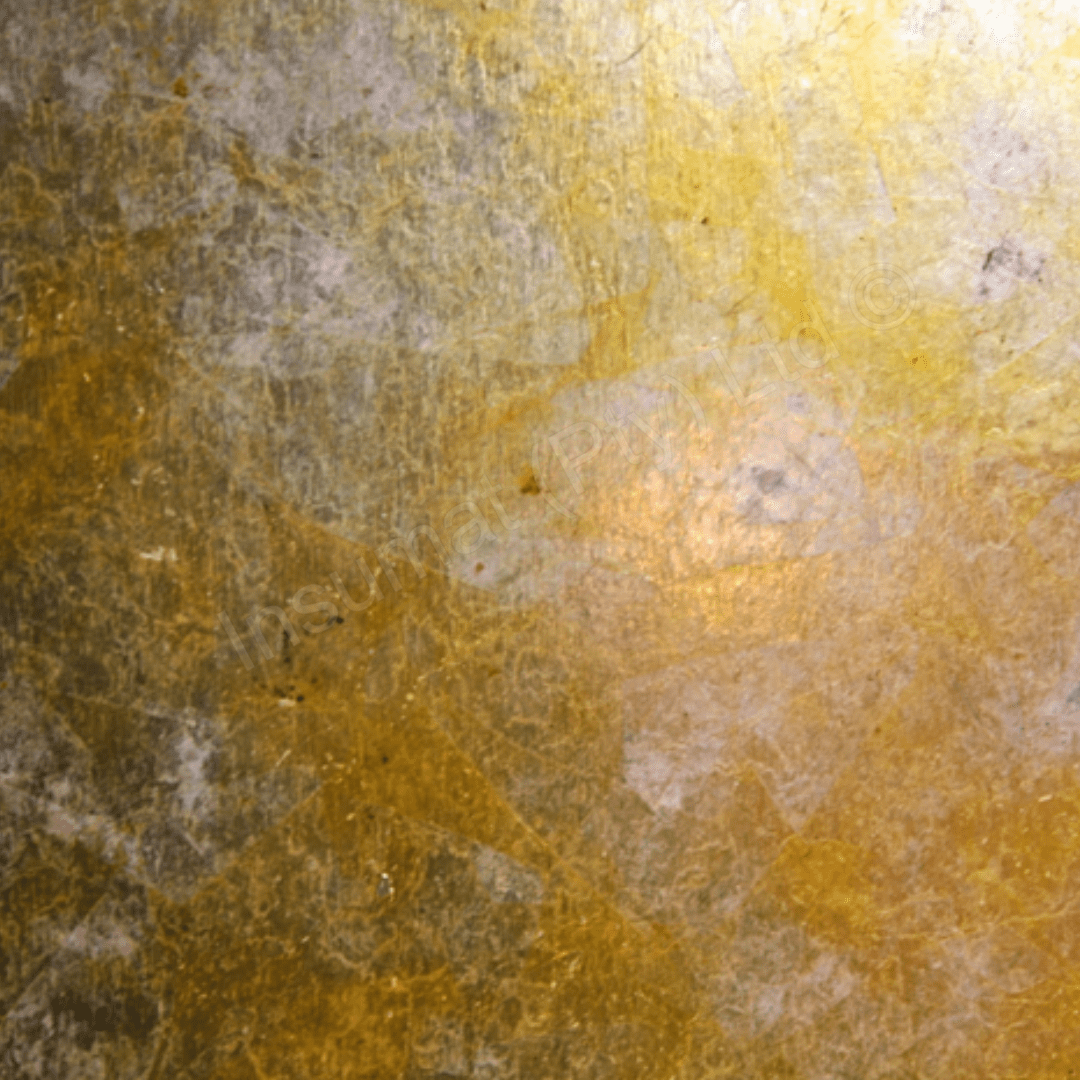

Hot Moulding MICA (Shellac)
- Class F - 155°C
- BDV - varies by thickness
- Sold per sheet 980x780mm in 0.25/0.76mm
- Standard colour - brown

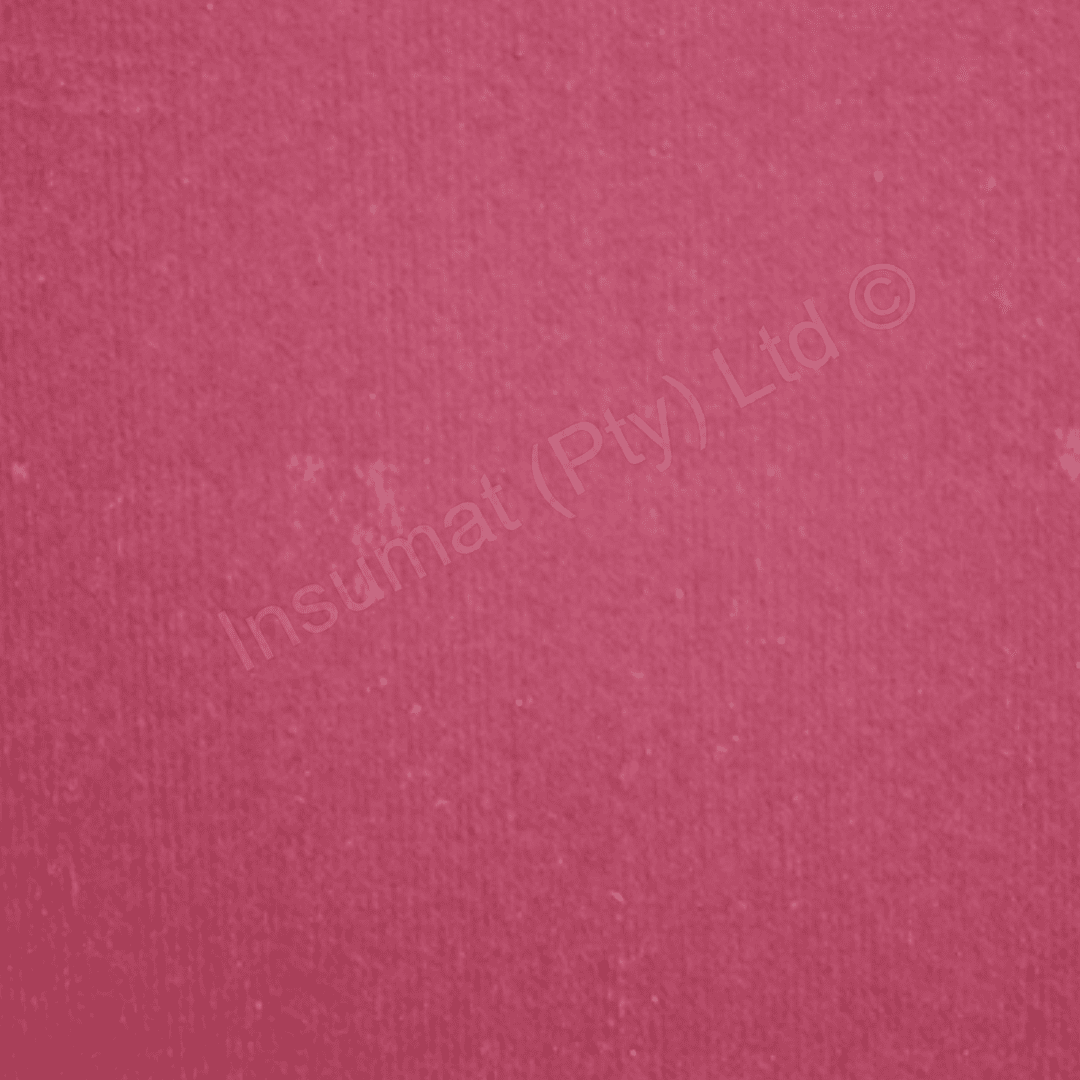

Vulcanized Red Fibre
- Class B - 130°C
- Sold per sheet in a 0.8/1.6/3.0mm x1100x1000mm
- Used for wedging on small mush wounds
- The red Fibre can also handle high voltage and offers 4kV per mm

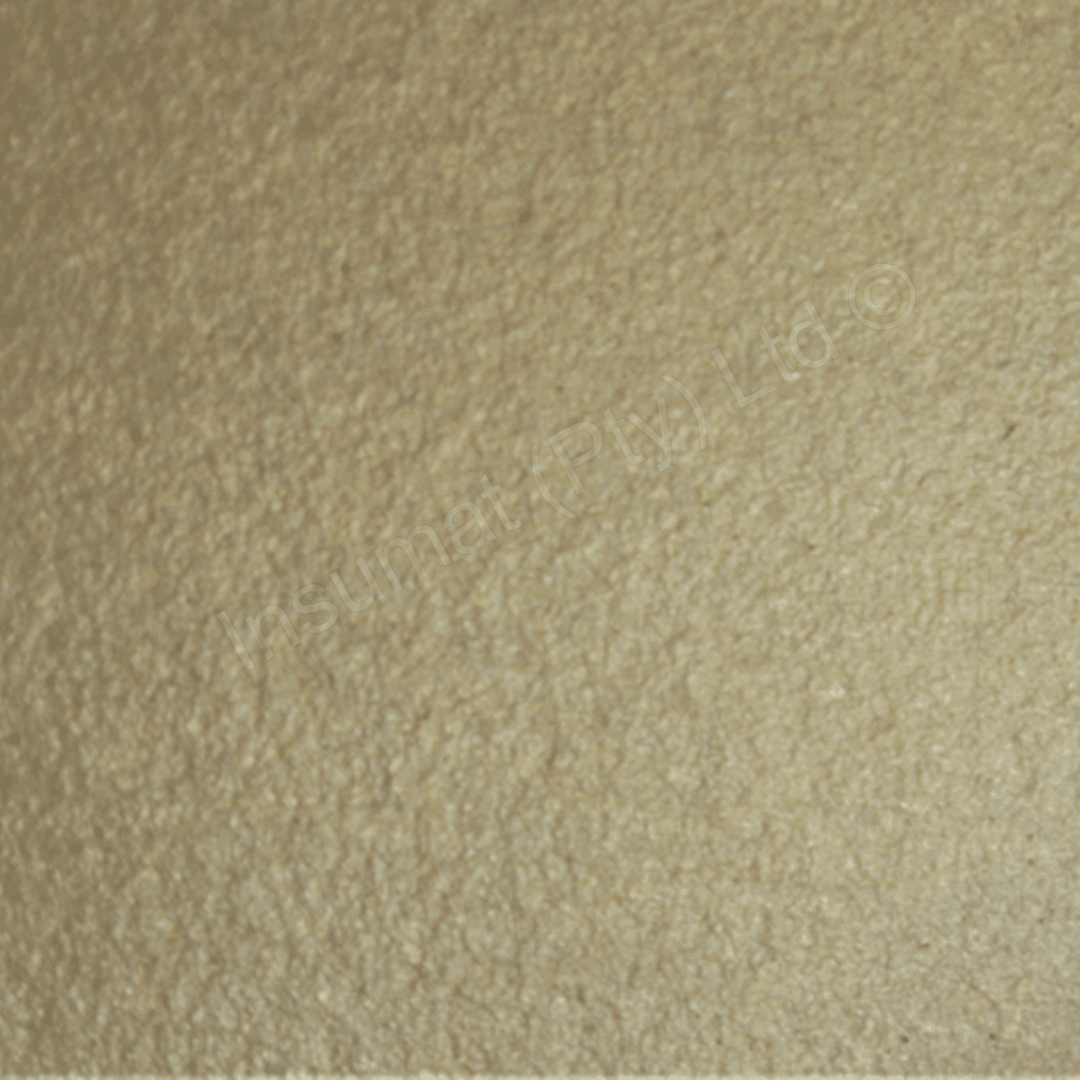

Commutator MICA (Segment MICA)
- Standard 0.8 and 1.0mm x 980x780mm sheets.
- Used to manufacture and repair commutators on DC machines.
- The mica can be punched or machined and used for segment mica and is mechanically very strong.
Resin Rich Tapes

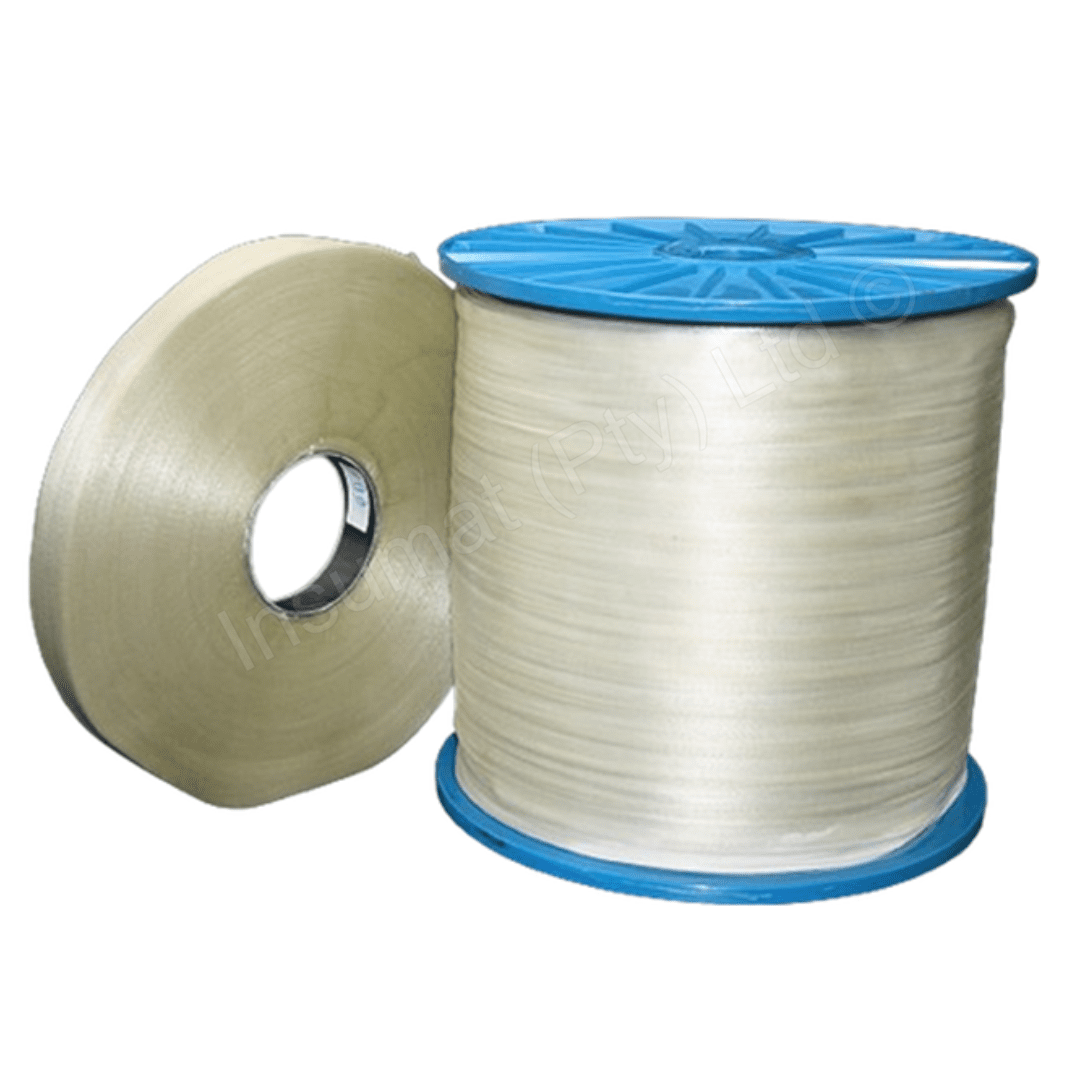

Banding Tape (Resi-Binder)
- Class F - 155°C / Class H - 200°C
- Sold per roll in a 200m and 1500m
- Standard colour - white
Resin Rich MICA Tape
Resin Rich MICA Tape
- Class F - 155°C
- Sold per roll (0.2mmx50mmx25m)
- Standard colour - clear
Adhesive Tapes

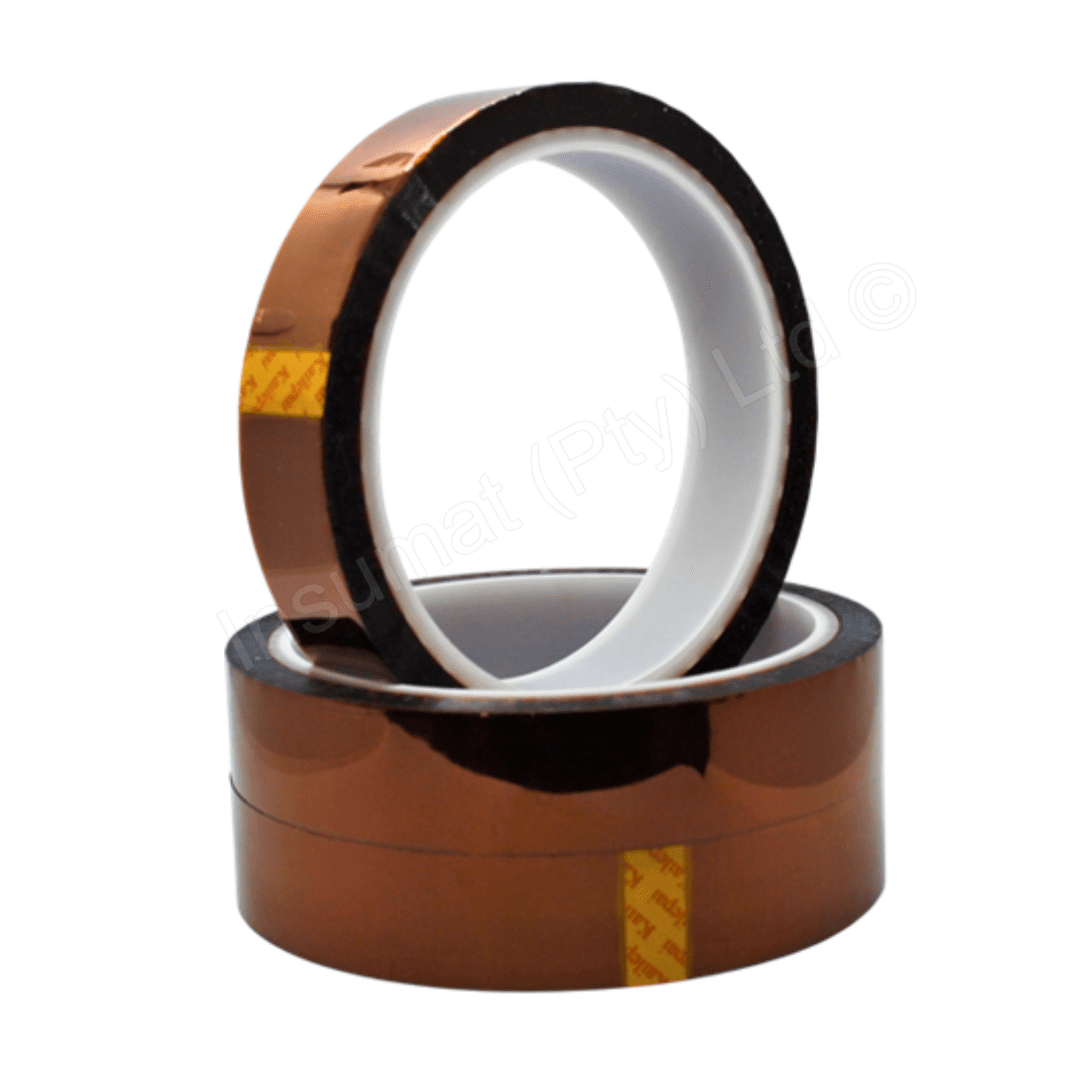

Adhesive Kapton Tape
- Class F - 155°C
- BDV - 6 kV
- Sold per roll in 0.065x9.5/12/19/25mm widths
- Standard colour - copper

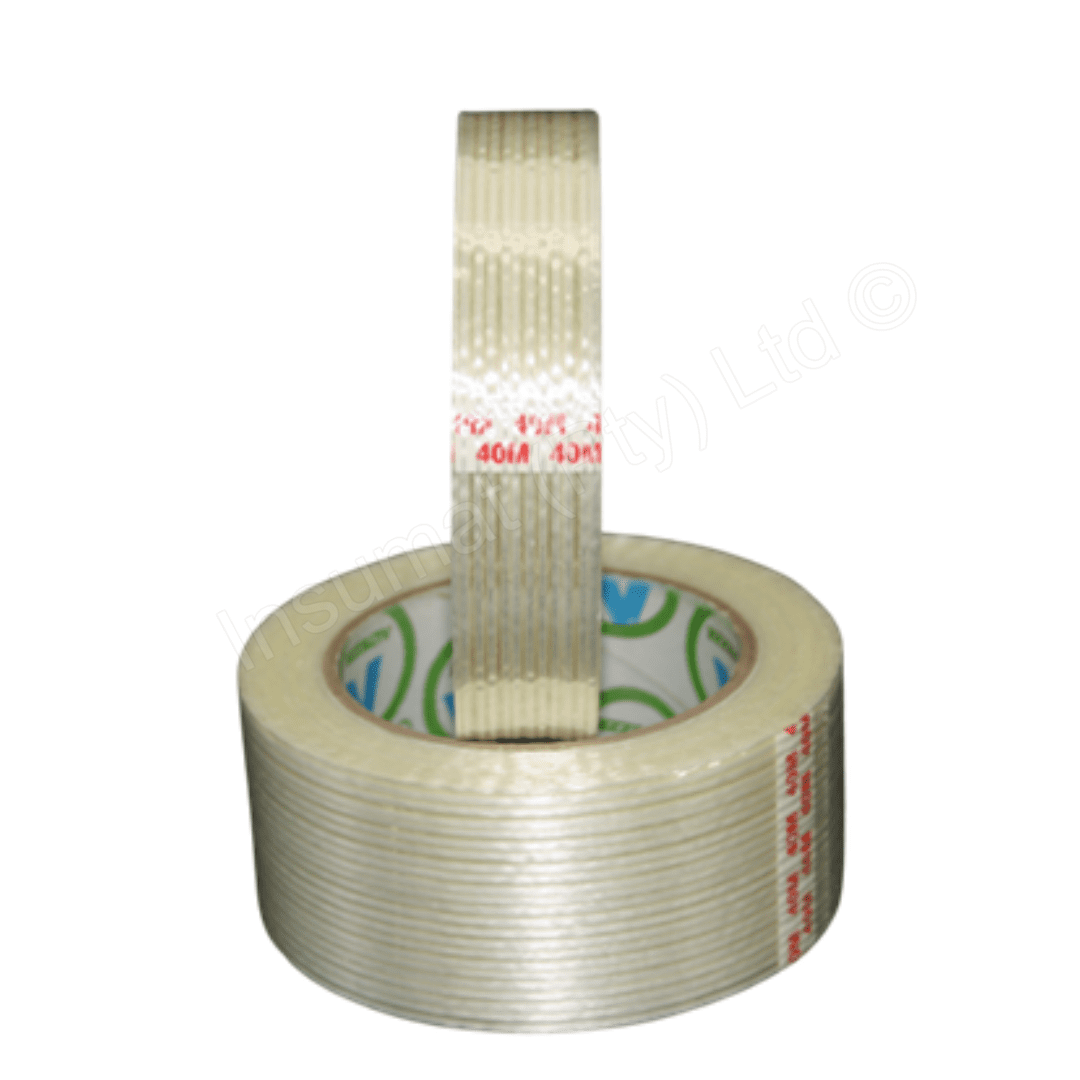

Filament Tape
- Service temperature - 80°C
- Sold per roll in 18/24/48mm
- Standard colour - clear with glass strands

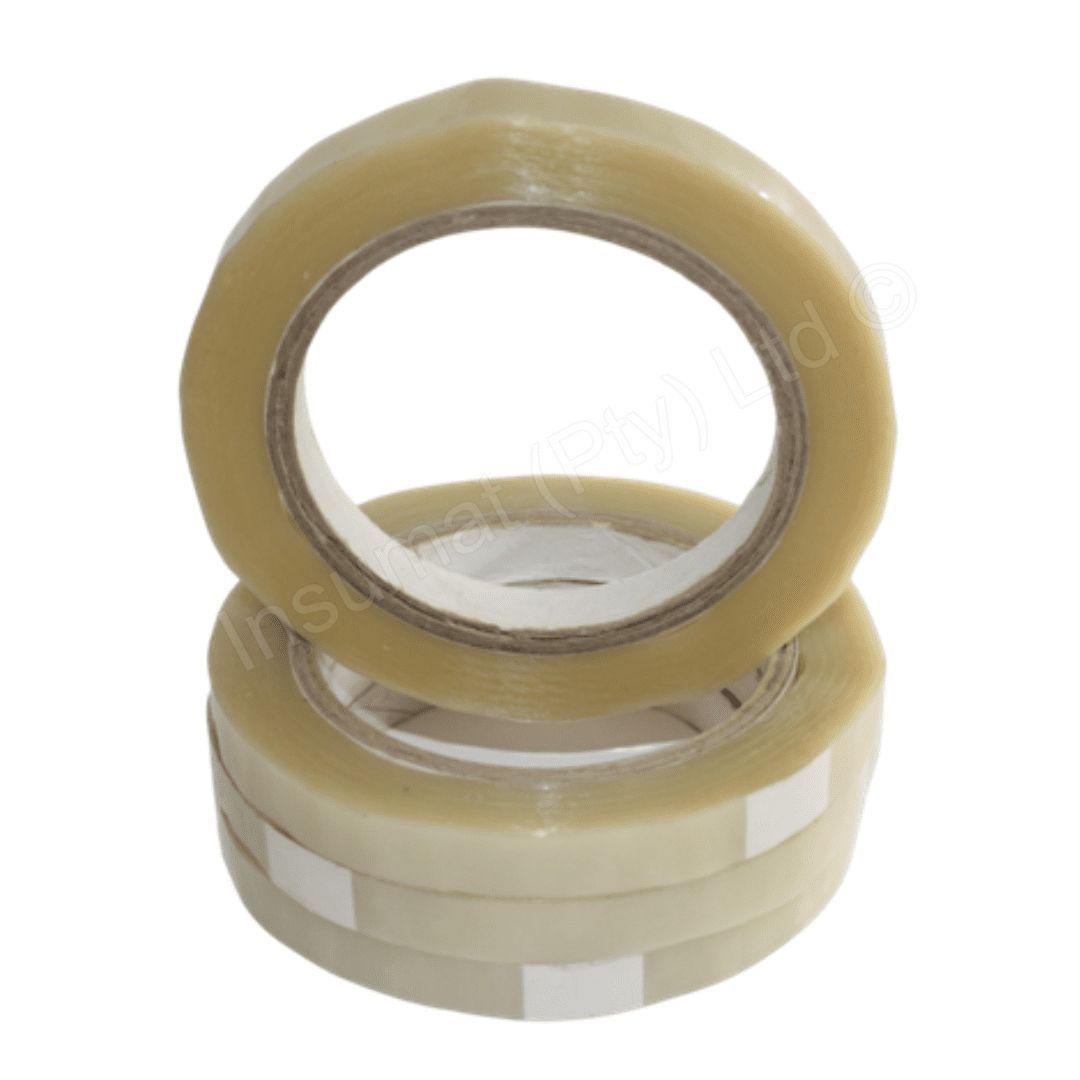

Clear Adhesive Polyester Tape
- Class B - 130°C
- BDV - 4.5kV
- Sold per 50m roll in 12/18mm widths
- Standard colour - clear

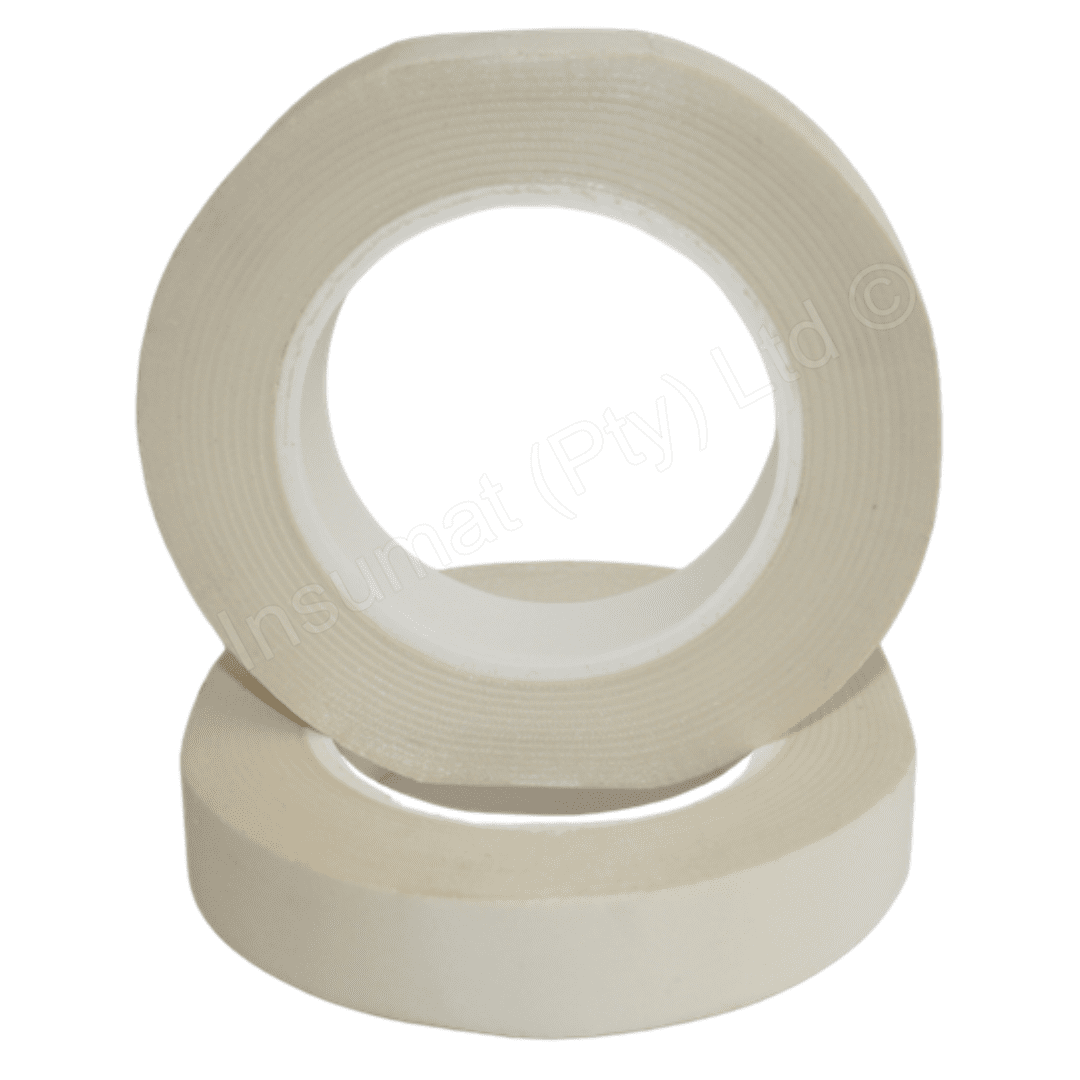

Adhesive Glass Tape (GL95)
- Class B - 130°C
- BDV - 2.5kV
- Sold per 50m roll in 18/24mm widths
- Standard colour - white

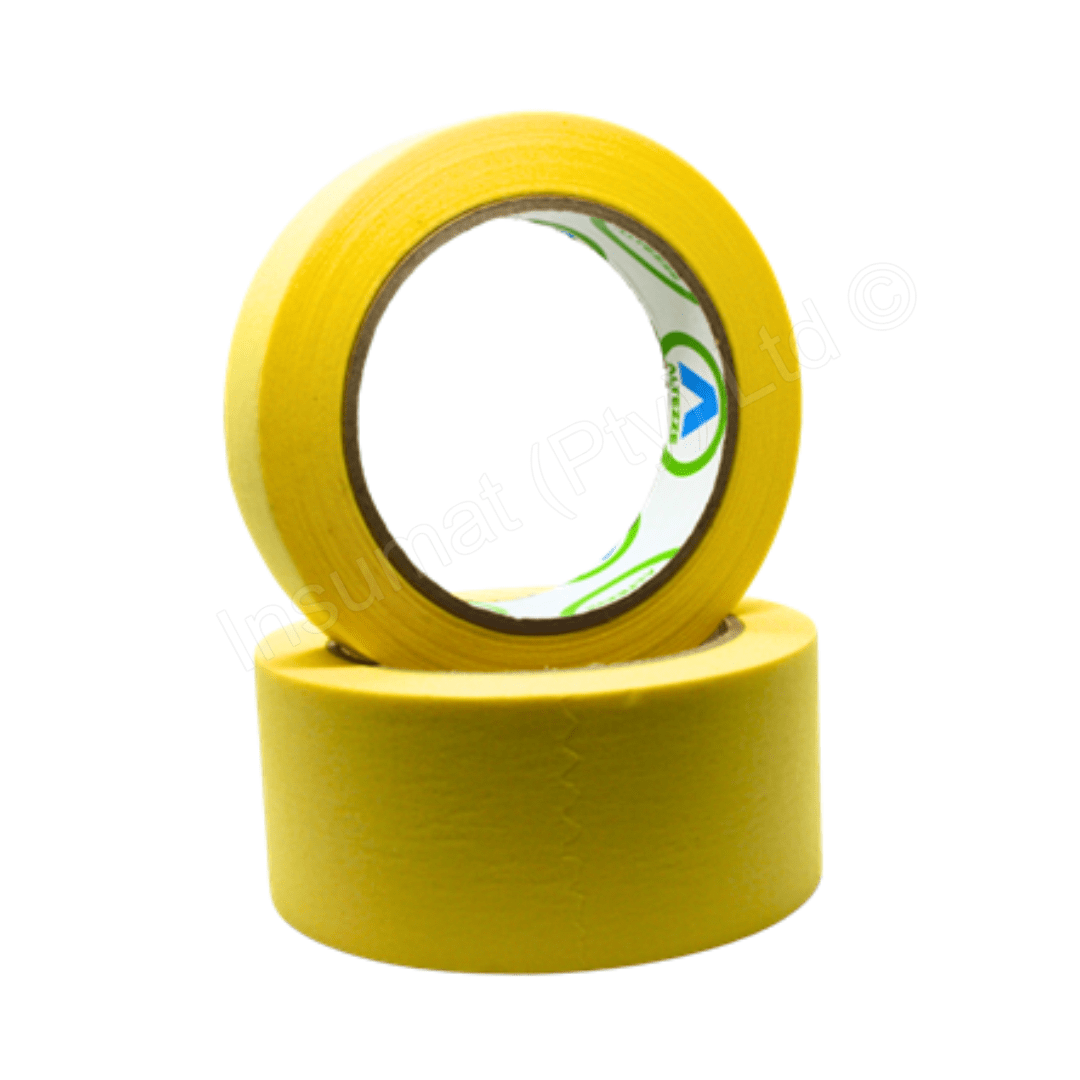

Masking Tape
- Service temperature - 80°C
- Sold per roll in 18/24/48mm
- Standard colour - yellow

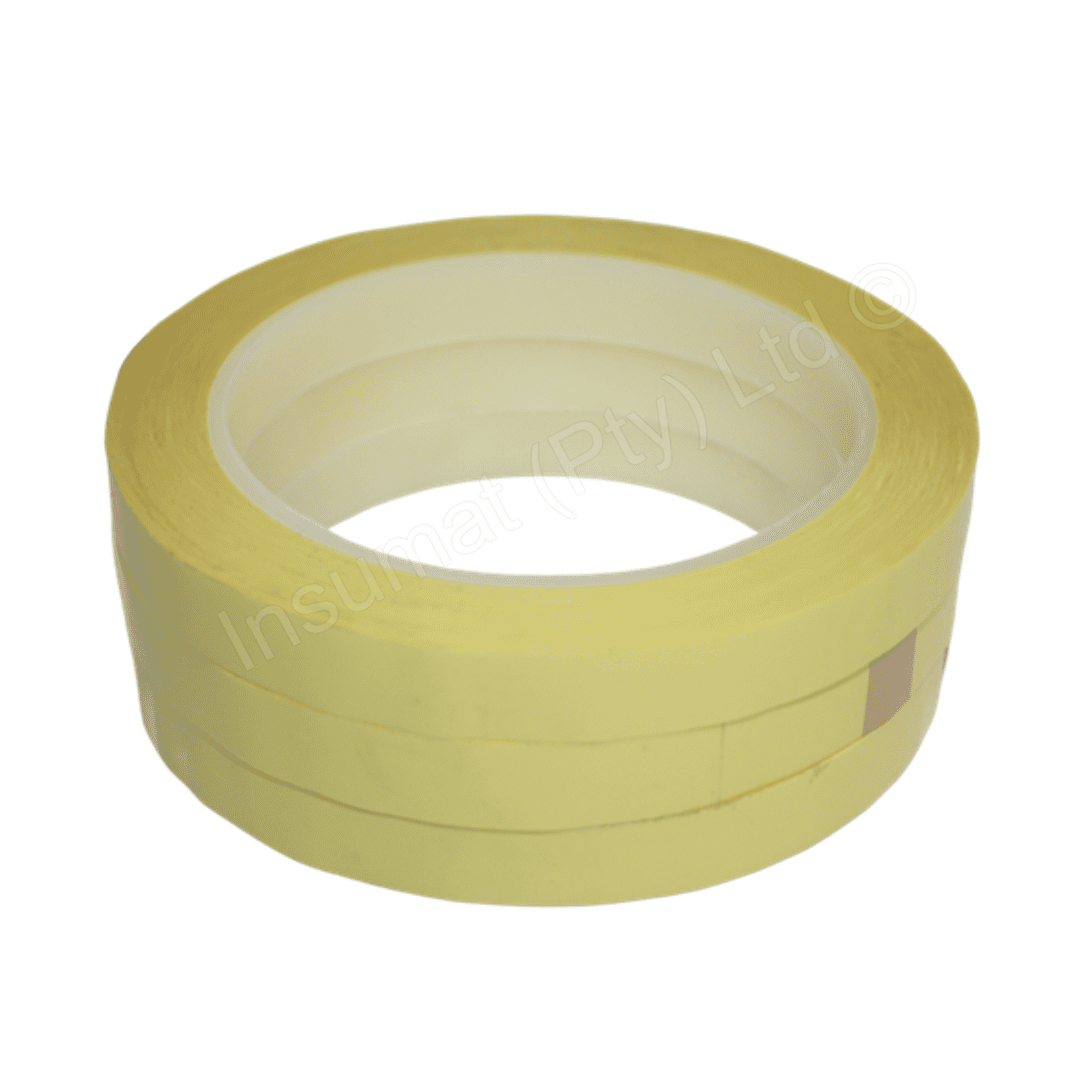

Yellow Adhesive Polyester Tape
- Class B - 130°C
- BDV - 4.5kV
- Sold per 50m roll in 6/9/12/15/18/24mm widths
- Standard colour - yellow

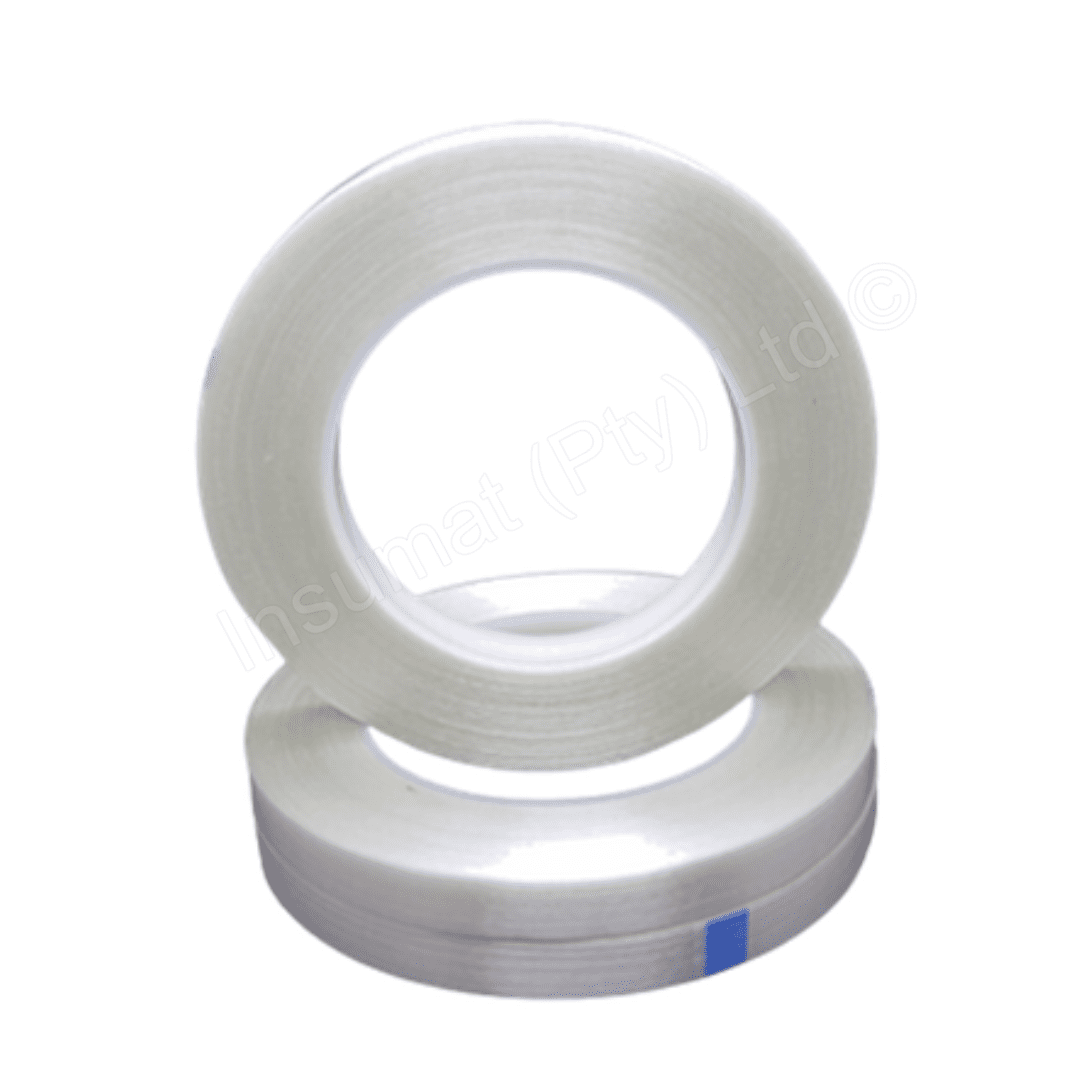

Oil Resistant Filament Tape
- Class F - 155°C
- BDV - 5kV
- Sold per roll in 12/18/24mm widths
- Standard colour - clear with glass strands
Woven Tapes

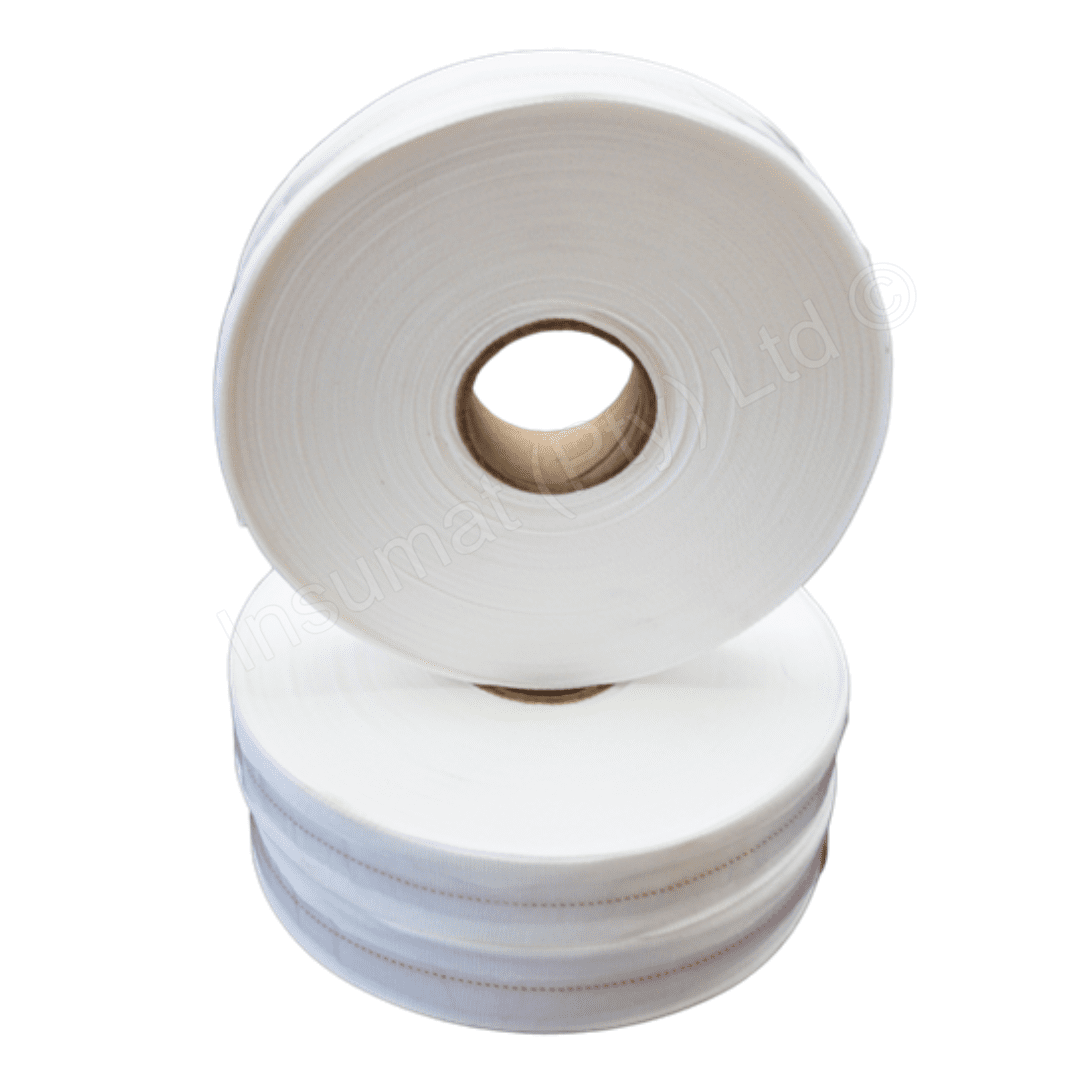

Polyester Dynamo Tape
- Class A - 105°C
- Sold per 50m roll in 12/19/25/35mm widths
- Standard colour - white with red tracer line

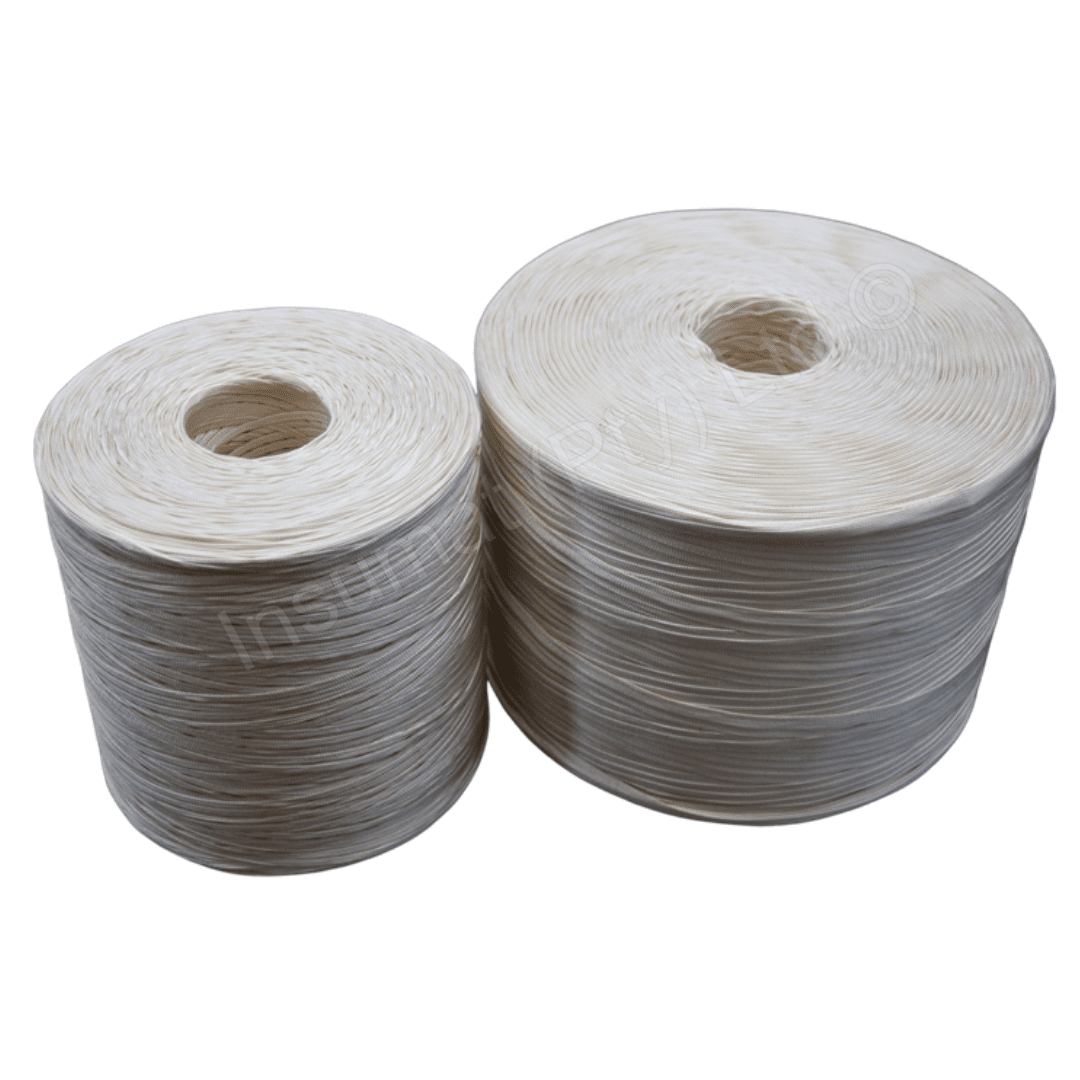

Tying String
- Sold per roll in 4 & 8 strand
- 4 strand - 1000m roll
- 8 strand - 500/1000m roll
- Standard colour - white

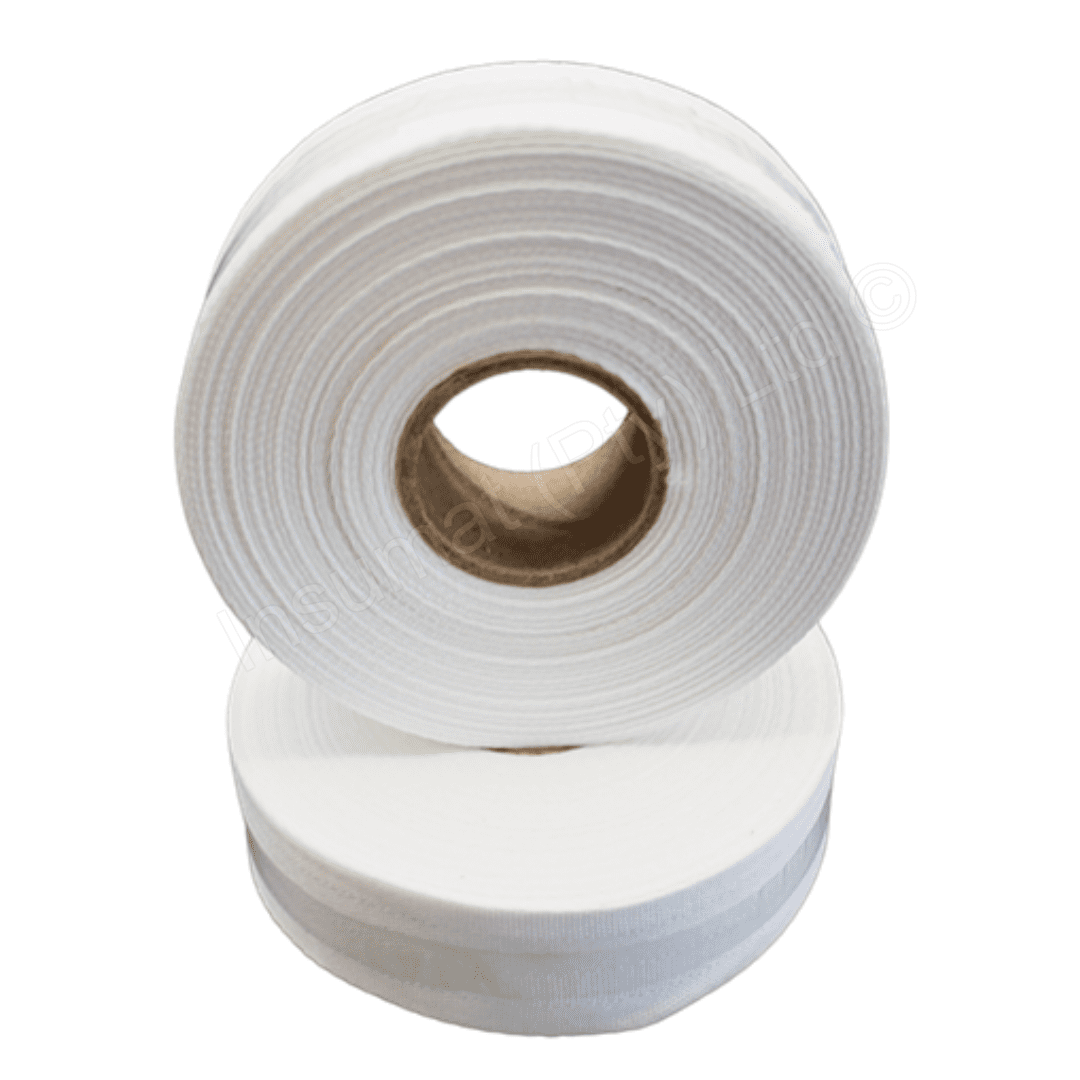

Polyester Webbing Tape
- Class A - 105°C
- Sold per 25m roll in 19/25/35mm widths
- Standard colour - white

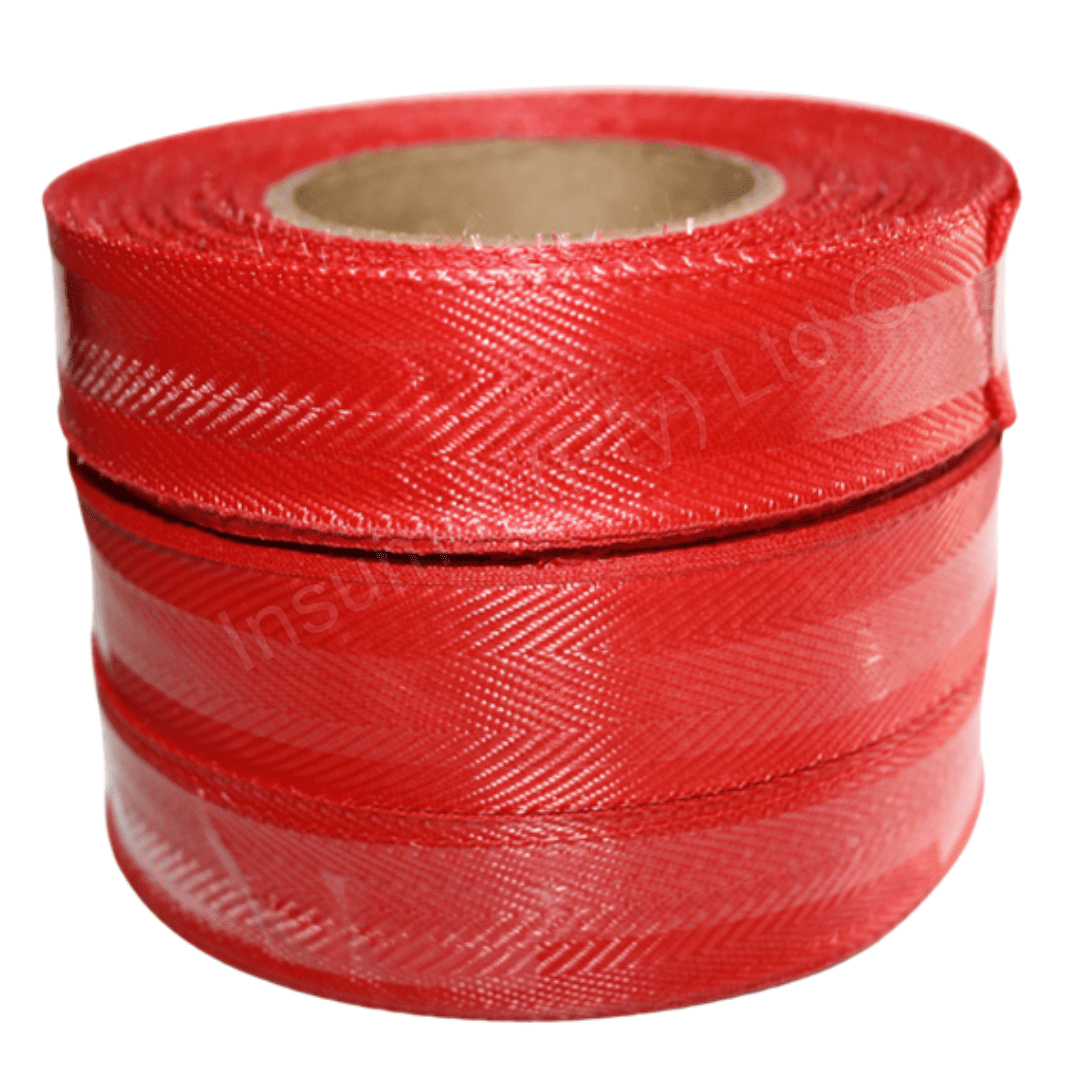

Polytwill Tape
- Class C - 200 °C
- Manufactured with a herringbone twill weave which ensures the tape is mechanically much stronger than the typical box weave.
- Provides excellent absorption qualities, shielding and armouring.

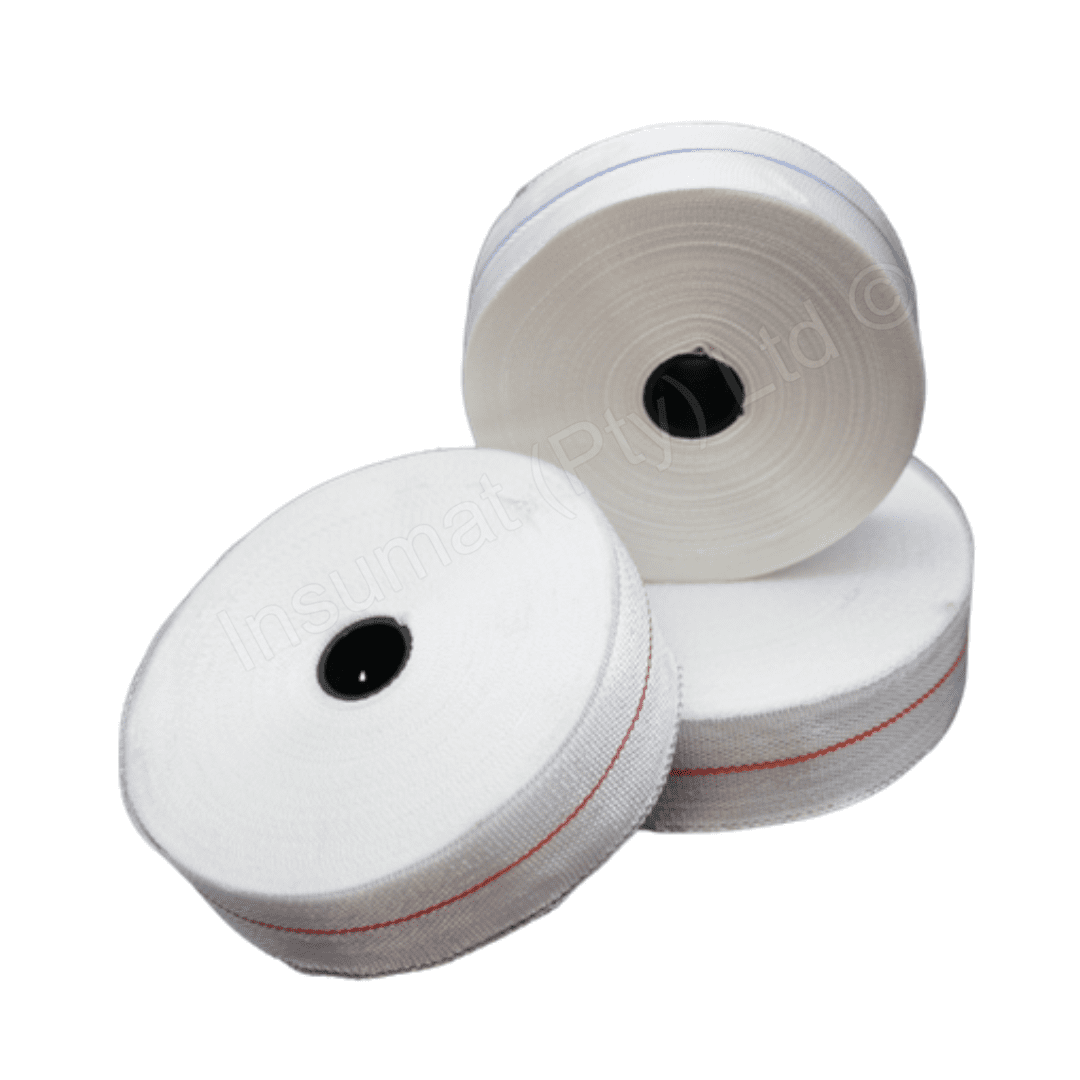

Glass Tape
- Class C - 200°C
- Sold per 50m roll in 12/19/25mm widths
- Standard colour - white with tracer line
- 0.09mm thick - blue tracer line
- 0.13mm thick - red tracer line
- 0.18mm thick - orange tracer line
Specialised Tapes

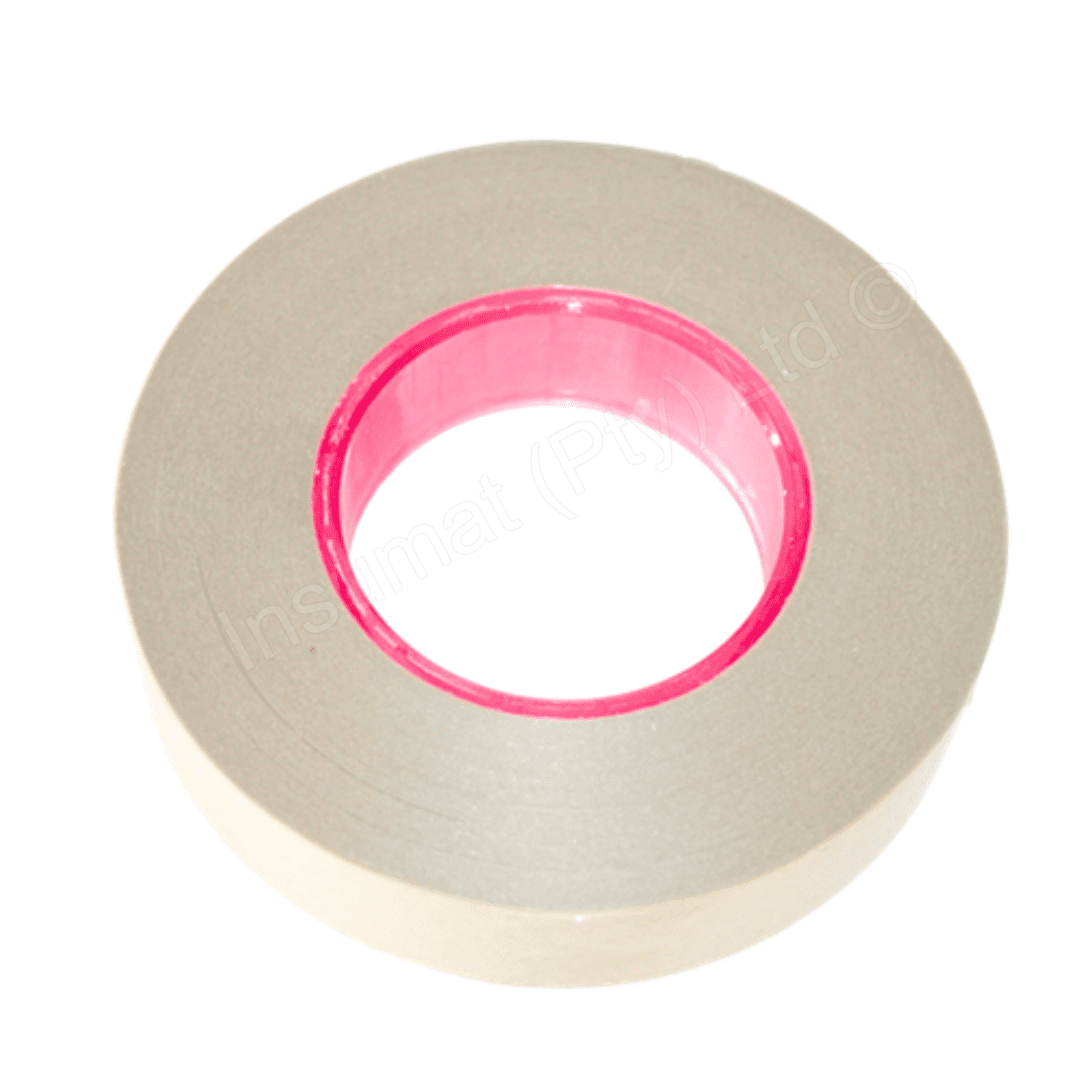

Polyester Backed MICA Tape
- Class F - 155°C
- BDV - 4.5kV
- Sold per 0.13mmx25mmx50m roll on a 55mm core
- Standard colour - silver

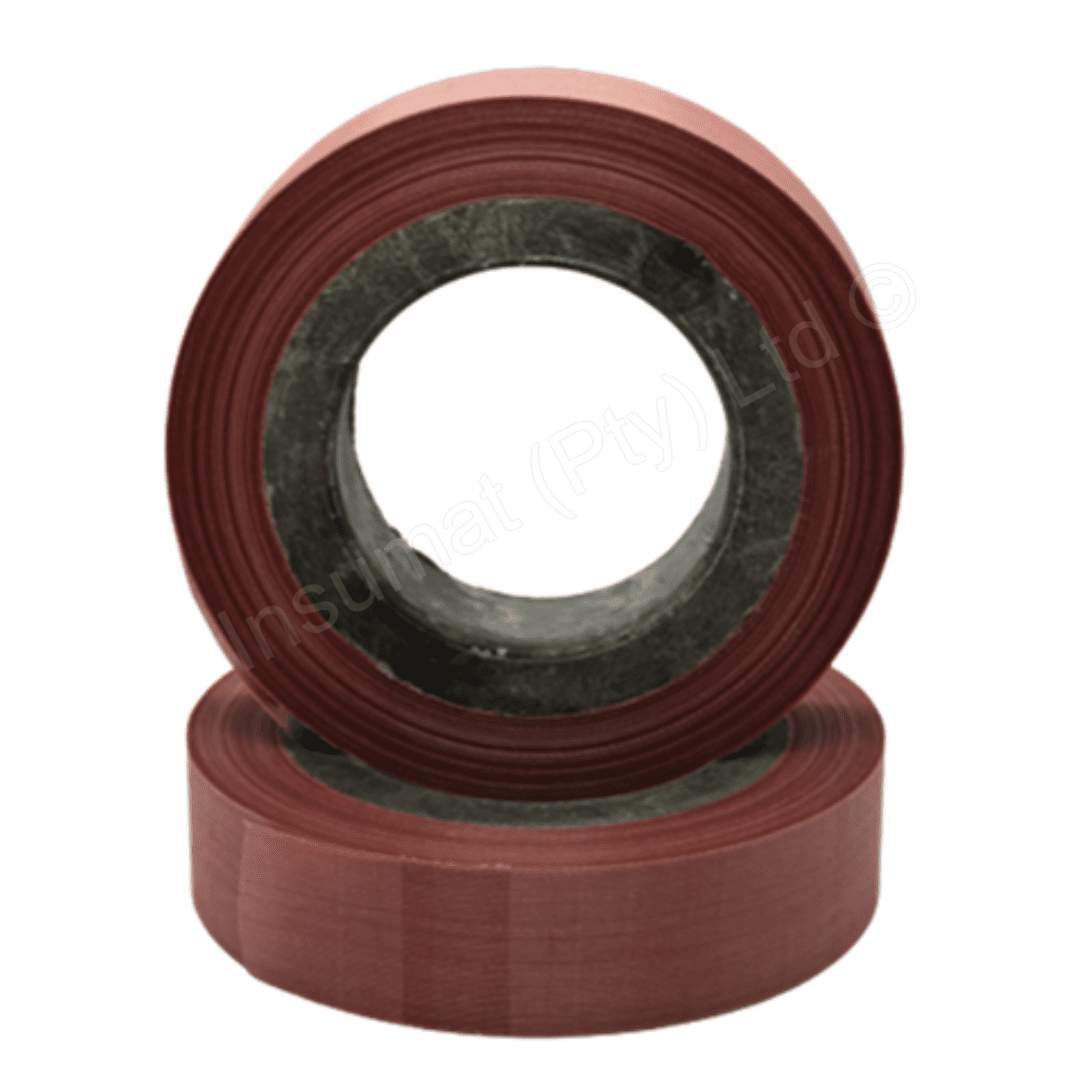

Sealing Tape
- Class F - 155°C
- Sold per roll 0.075mmx25mmx50m on a 40mm core
- Standard colour - red

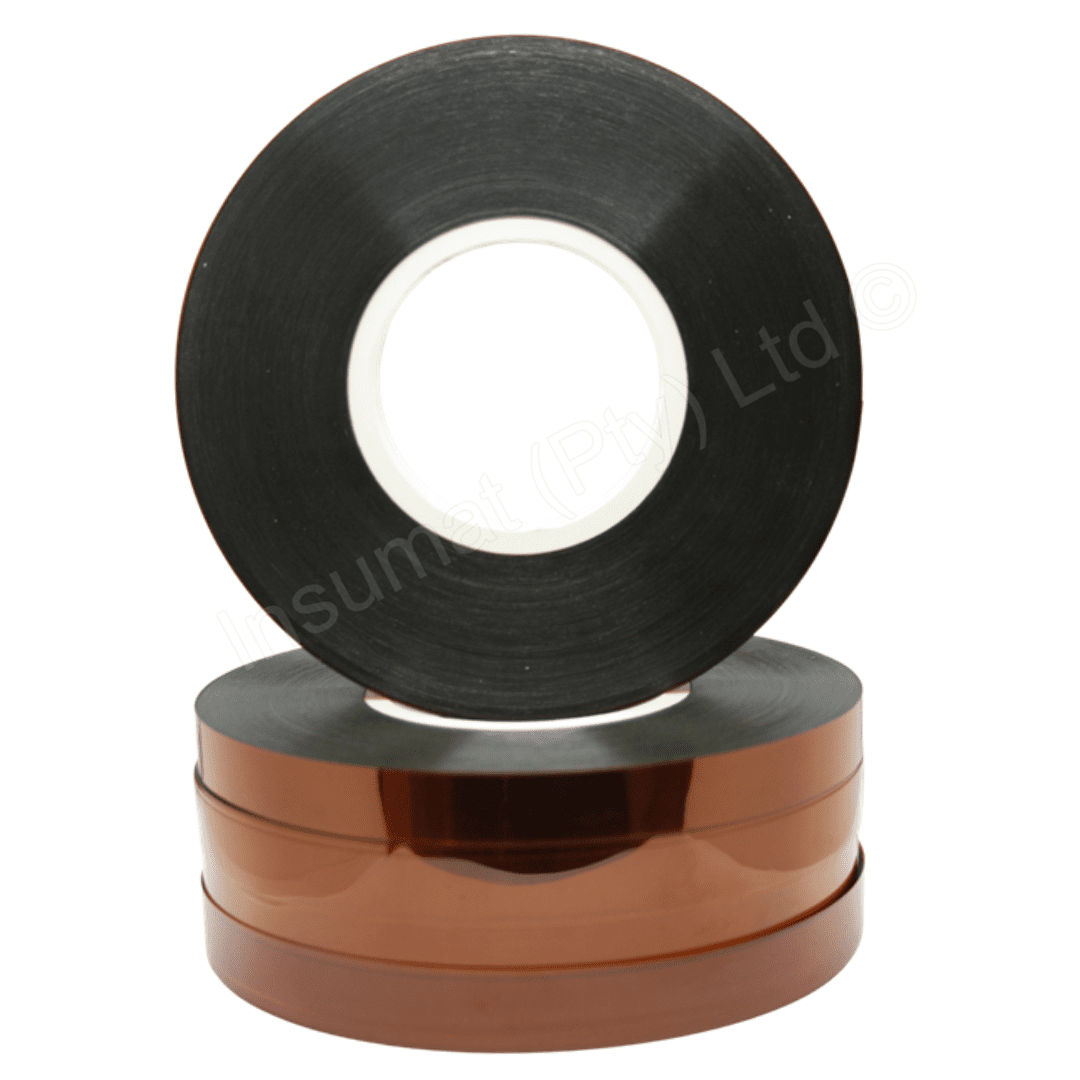

Non-Adhesive Kapton Tape
- Class H - 180°C
- BDV -
- 100HN - 7kV
- 200HN - 6kV
- 300HN - 5kV
- Sold in 12mm rolls
- Standard colour - copper

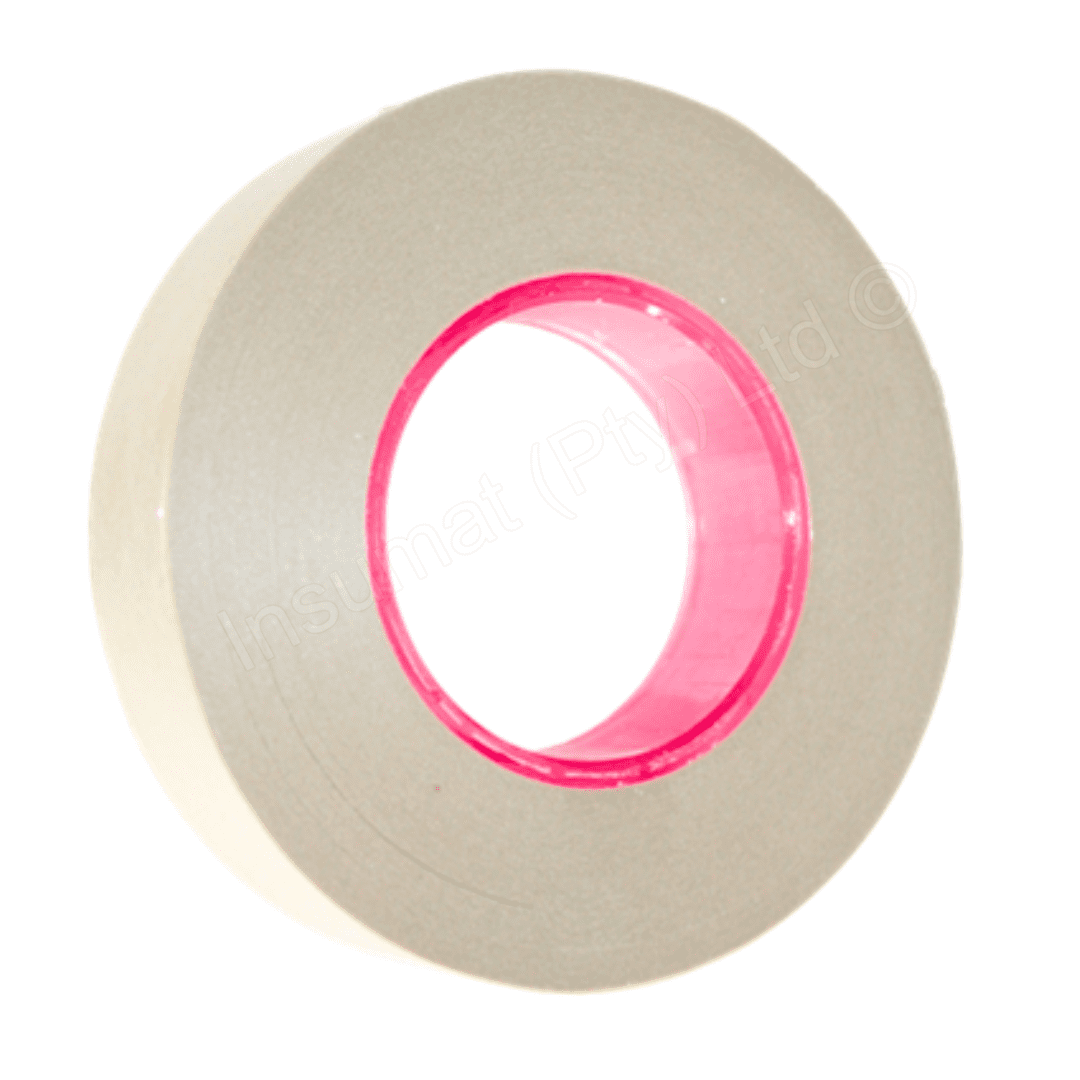

Glass Backed MICA Tape
- Class F - 155°C
- BDV - 2kV
- Sold per 0.15mmx25mmx50m roll on a 55mm core
- Standard colour - silver

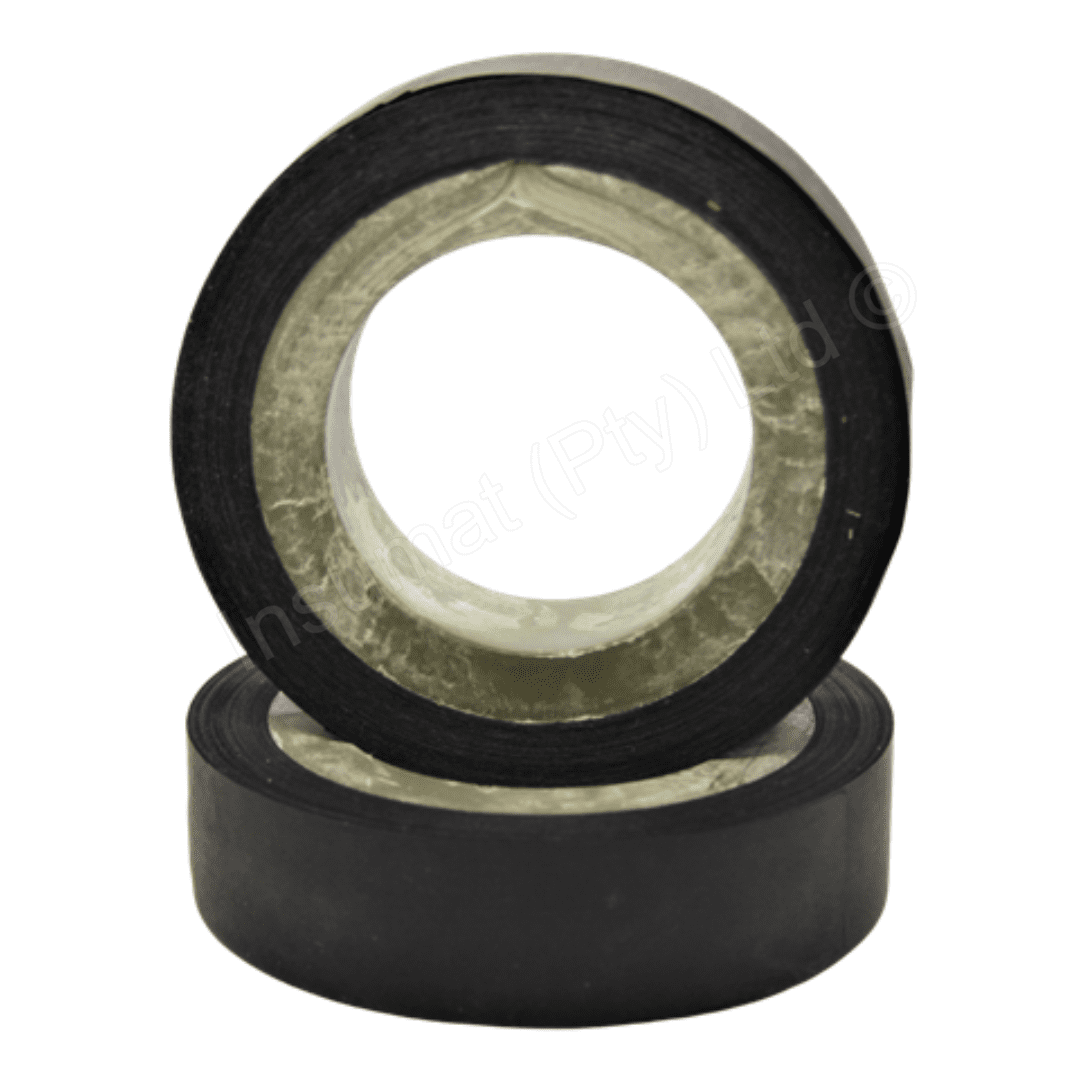

Conductive Tape
- Class F - 155°C
- Used in VPI/Resin Rich & Anhydride Systems
- Sold per roll 0.09mmx25mmx50m on a 40mm core
- Standard colour - black

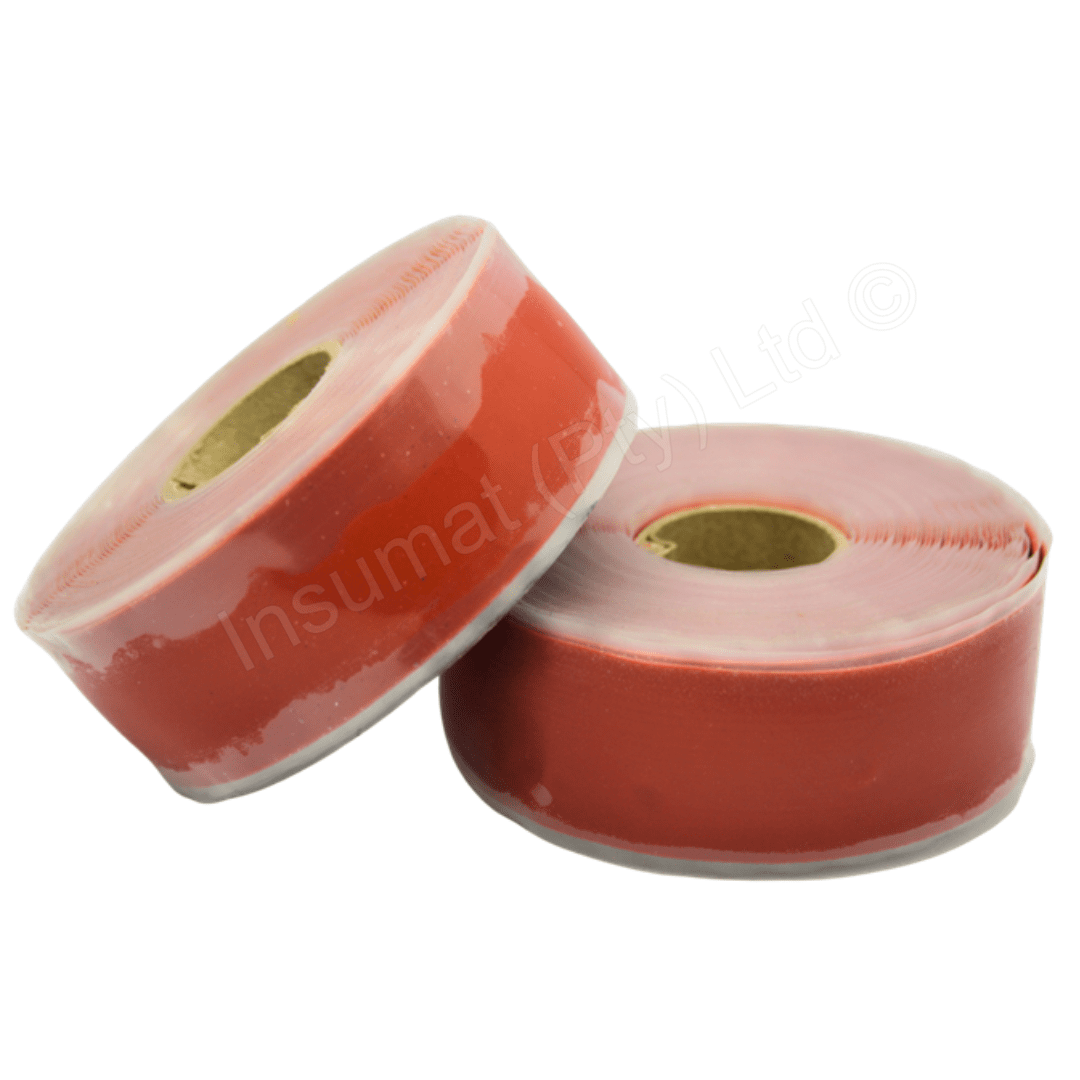

Self-Fusing Rubber Tape
- Class H - 180°C
- BDV - 20kV per mm
- Sold in 0.5x25mm rolls
- Standard colour - red

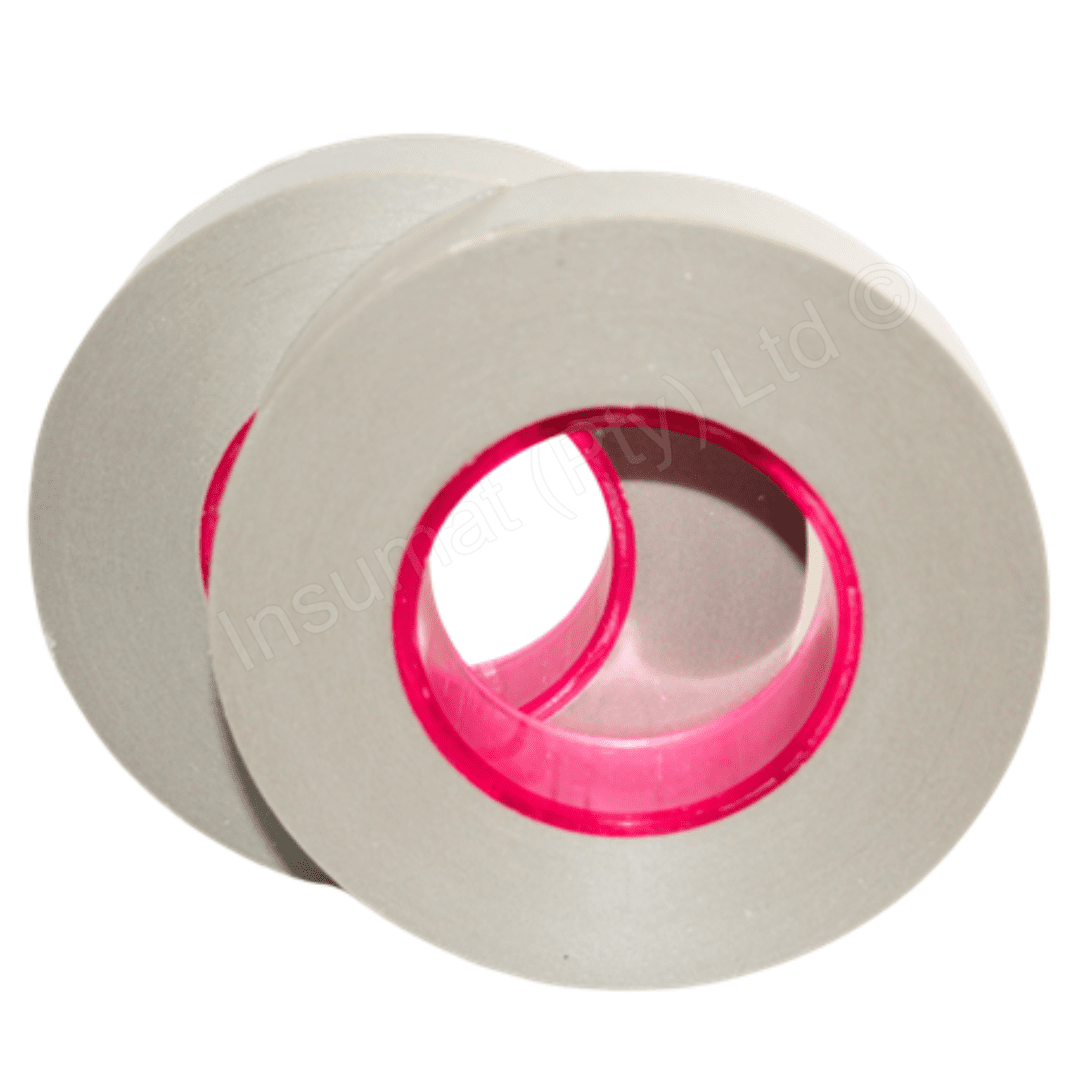

Polyester Glass MICA Polyester (PGMP)
- Class F - 155°C
- BDV - 4.5kV
- Sold per 0.17mmx25mmx50m roll on a 55mm core
- Standard colour - silver

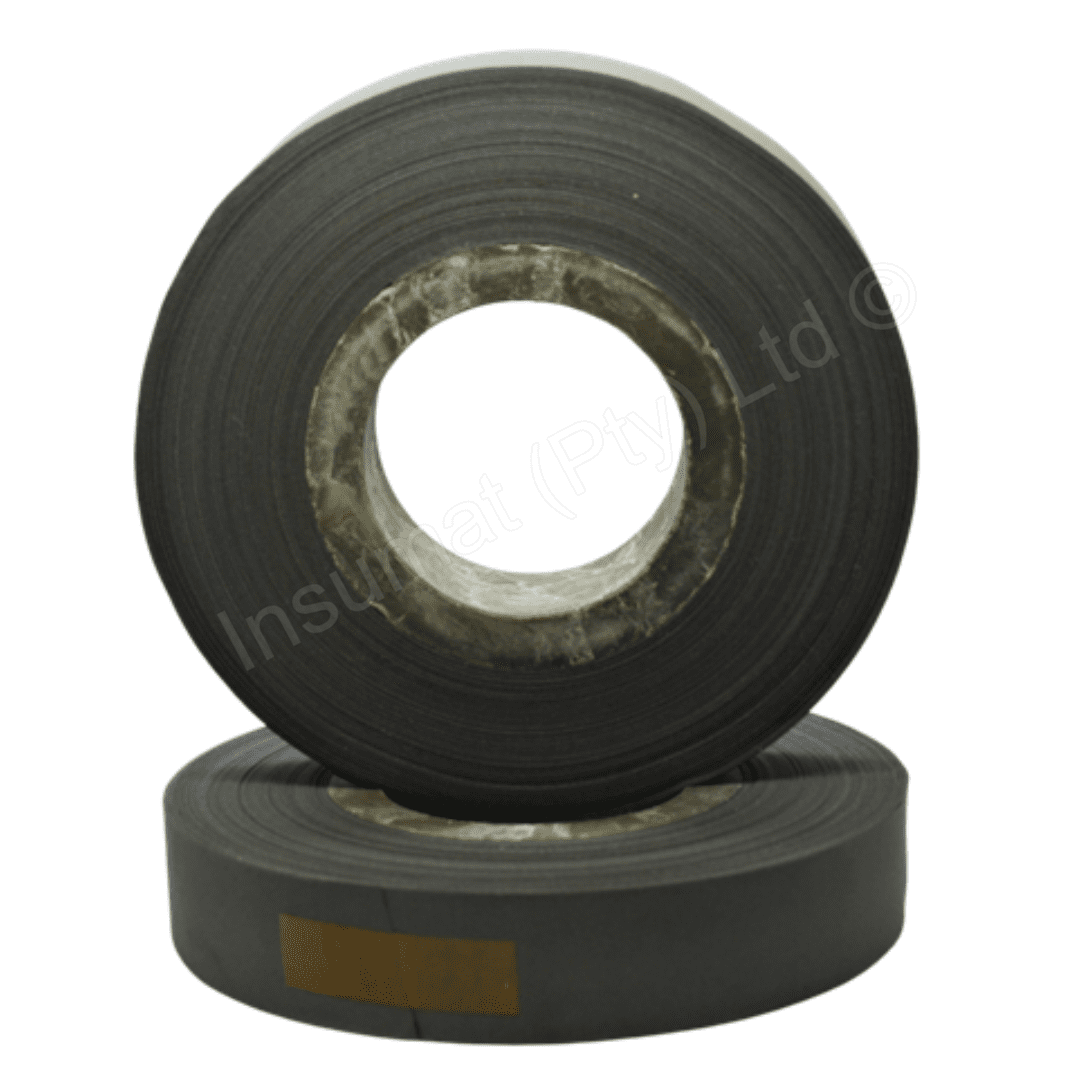

Semi-Conductive Tape
- Class F - 155°C
- Used in VPI/Resin Rich & Anhydride Systems
- Sold per roll 0.2mmx25mmx50m on a 40mm core
- Standard colour - grey
Varnish and Thinners

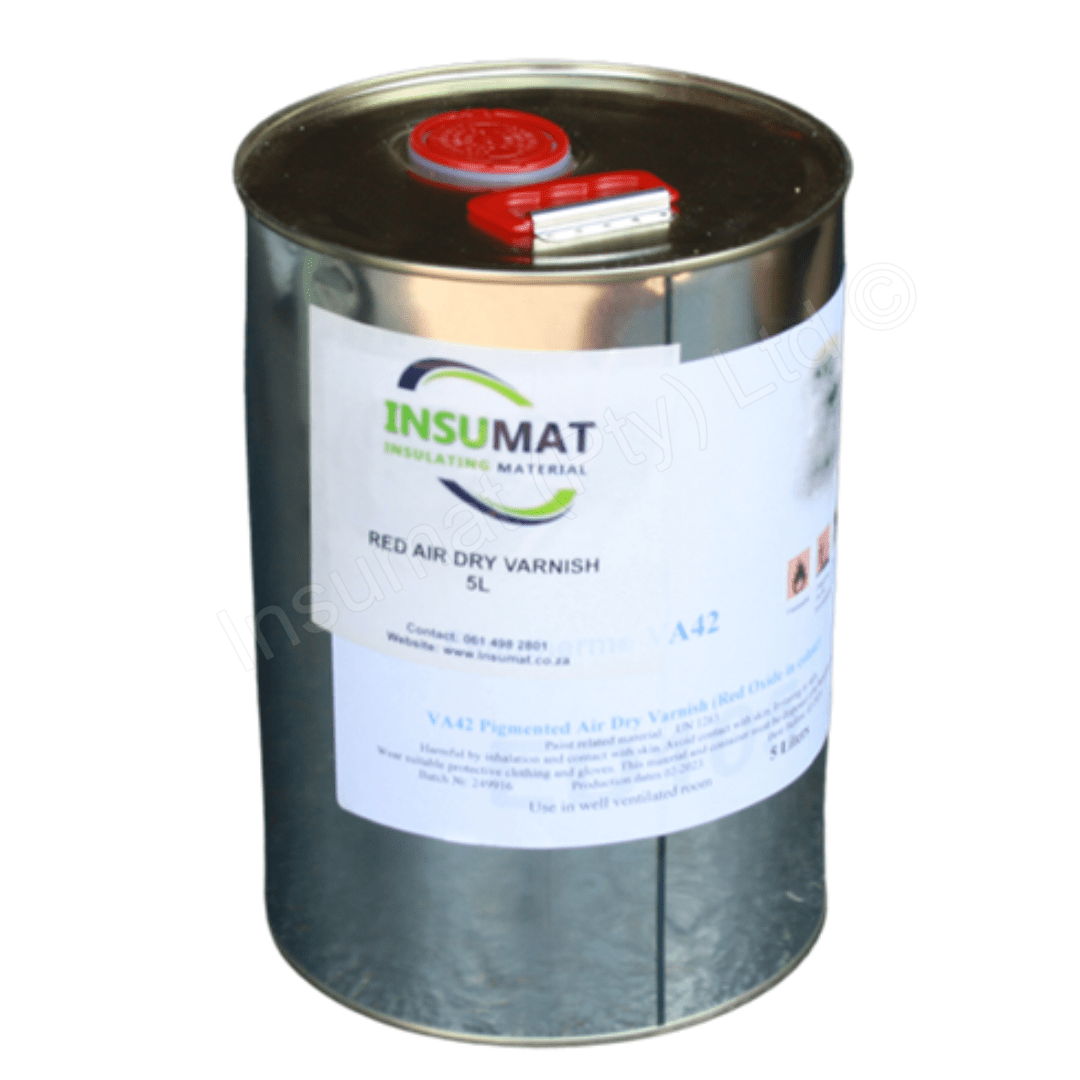

Air Drying Varnish
- Class F - 155°C
- Sold per 5L tin
- Standard colour - clear/white/red
- Imported grade

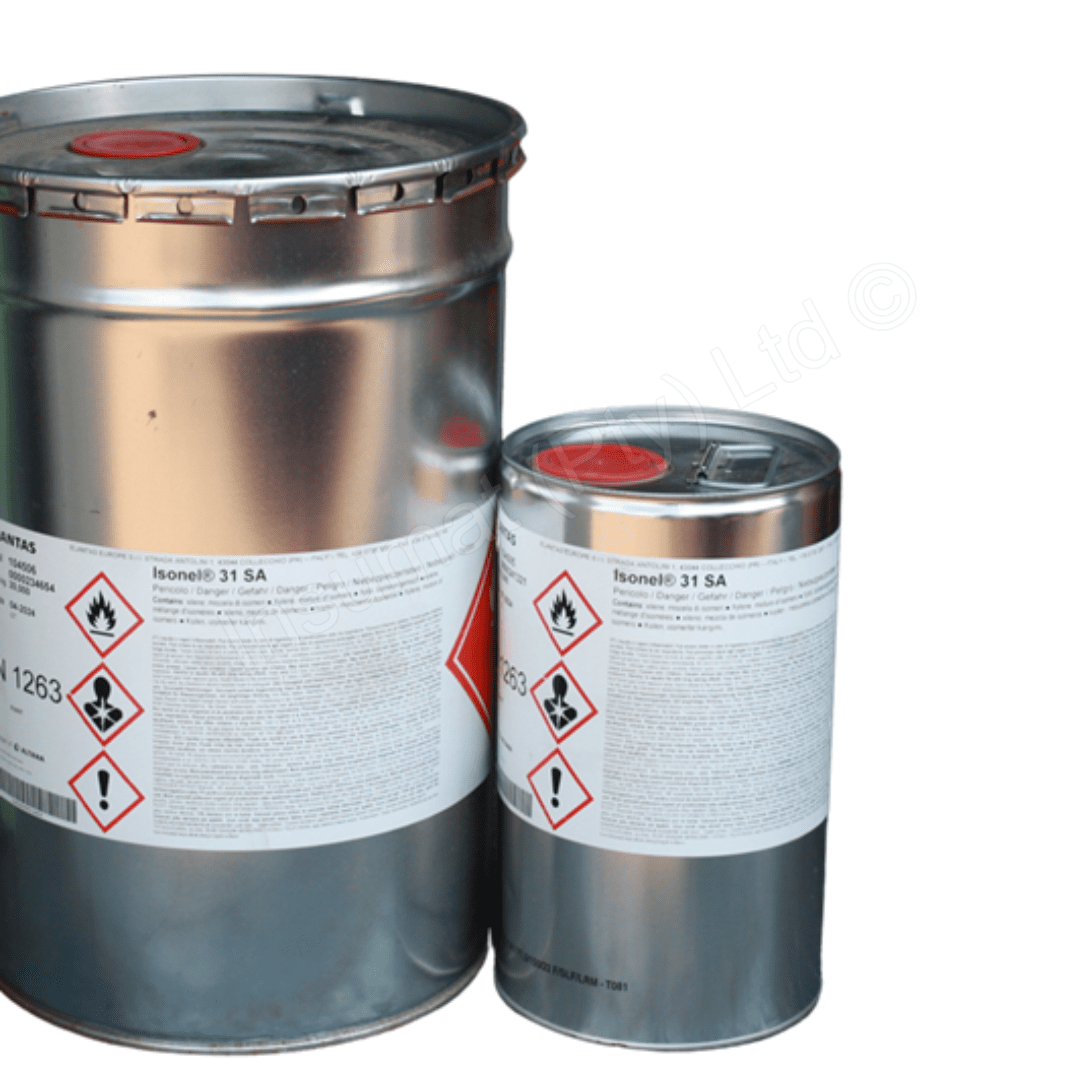

Isonel 31 SA Varnish
- Class H - 180°C
- Sold per 5/20/200L
- Standard colour - clear
- Imported grade

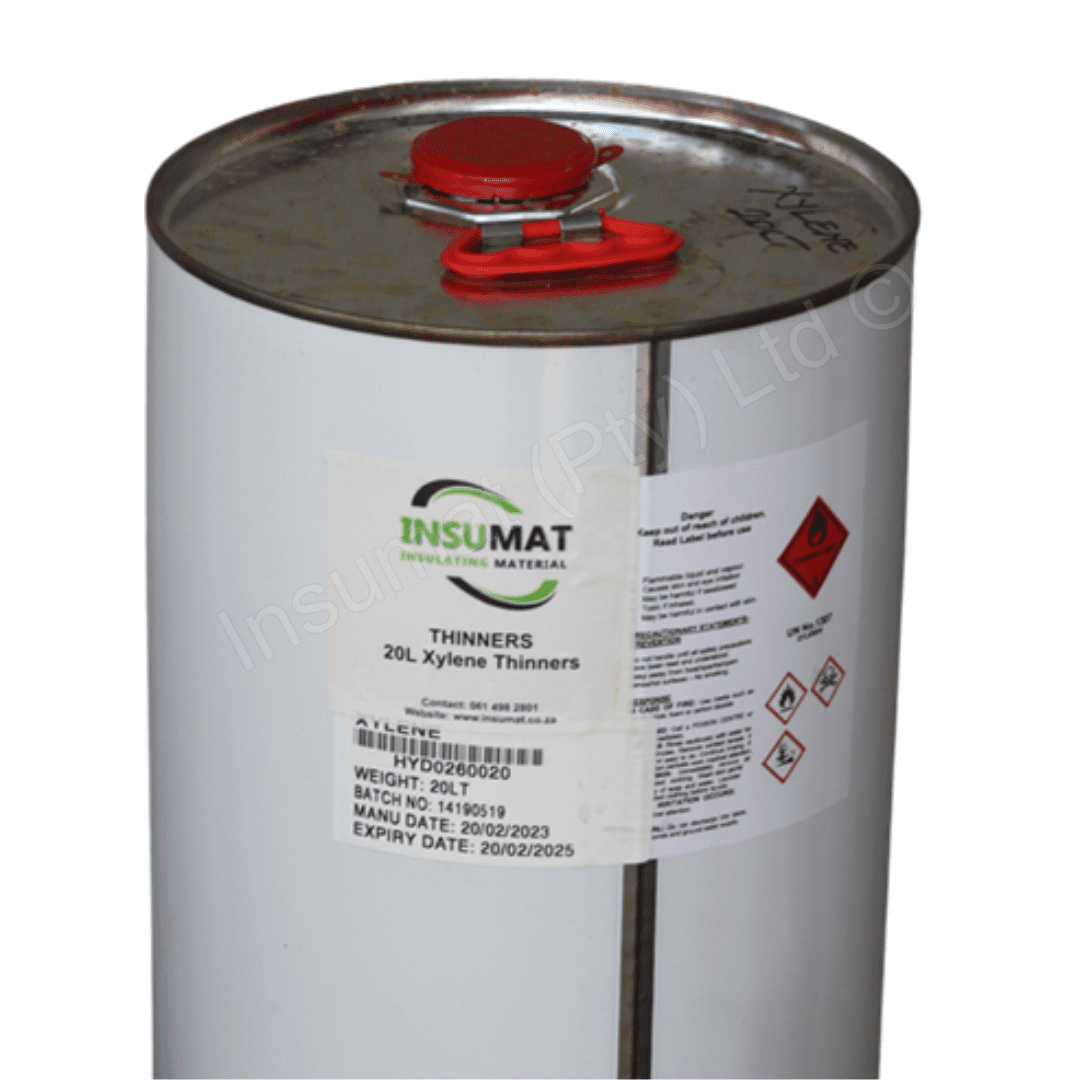

Xylene Thinners
- Sold per 5/20/200L
Transformer Insulation

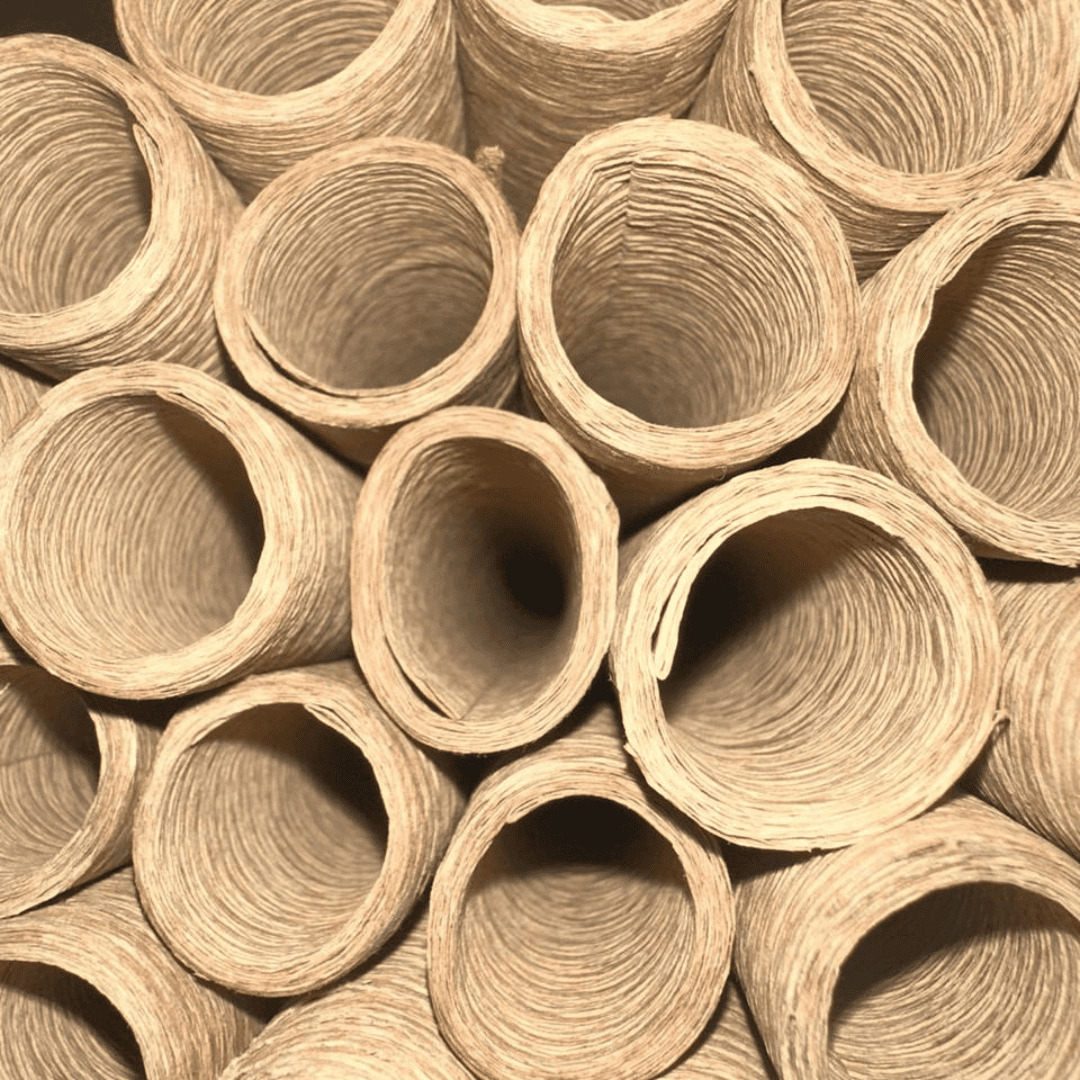

Crepe Paper Tubes
- Class A - 105°C
- BDV - Depends on wall thickness
- Sizes available 5x7/6x8/8x12/10x12/10x16/12x14 17x21/25x29 in 1000mm lengths
Diamond Dotted Paper
- Class A - 105°C
- BDV - Depends on thickness
- Sizes available 0.13mm/0.25mm/0.38mm in 1000mm lengths

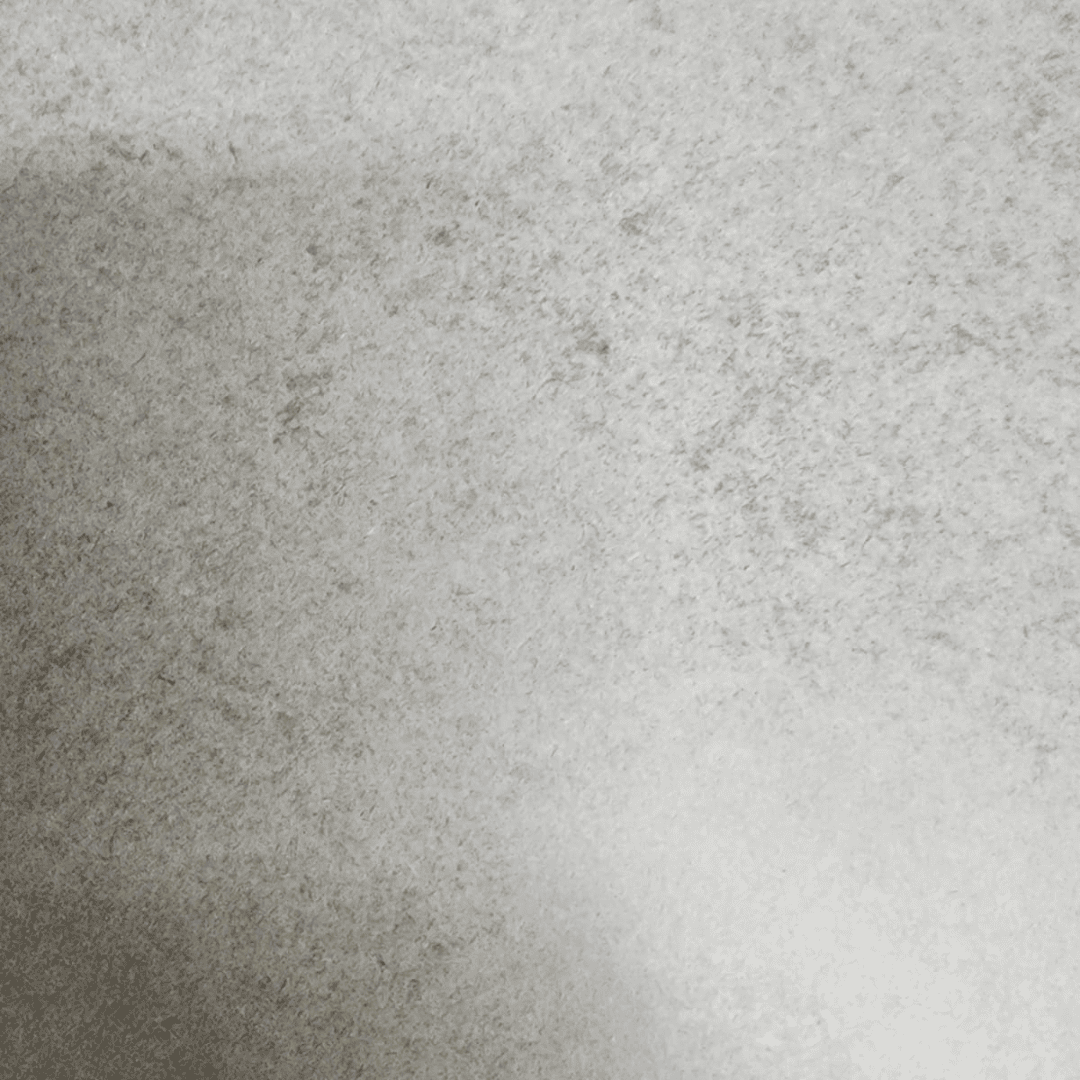

Insulation Kraft Paper
- Class A - 105°C
- BDV - 9kV
- Sold per kg & available in 0.25/0.38/0.5/0.8mm
Low Density Transfomer Board
- Class A - 105°C
- BDV - 12-14kV per mm in air
- Available in sheets of 1.0 x 2000x1000mm 2.0 x 2000x1000mm 3.0 x 2000x1000mm

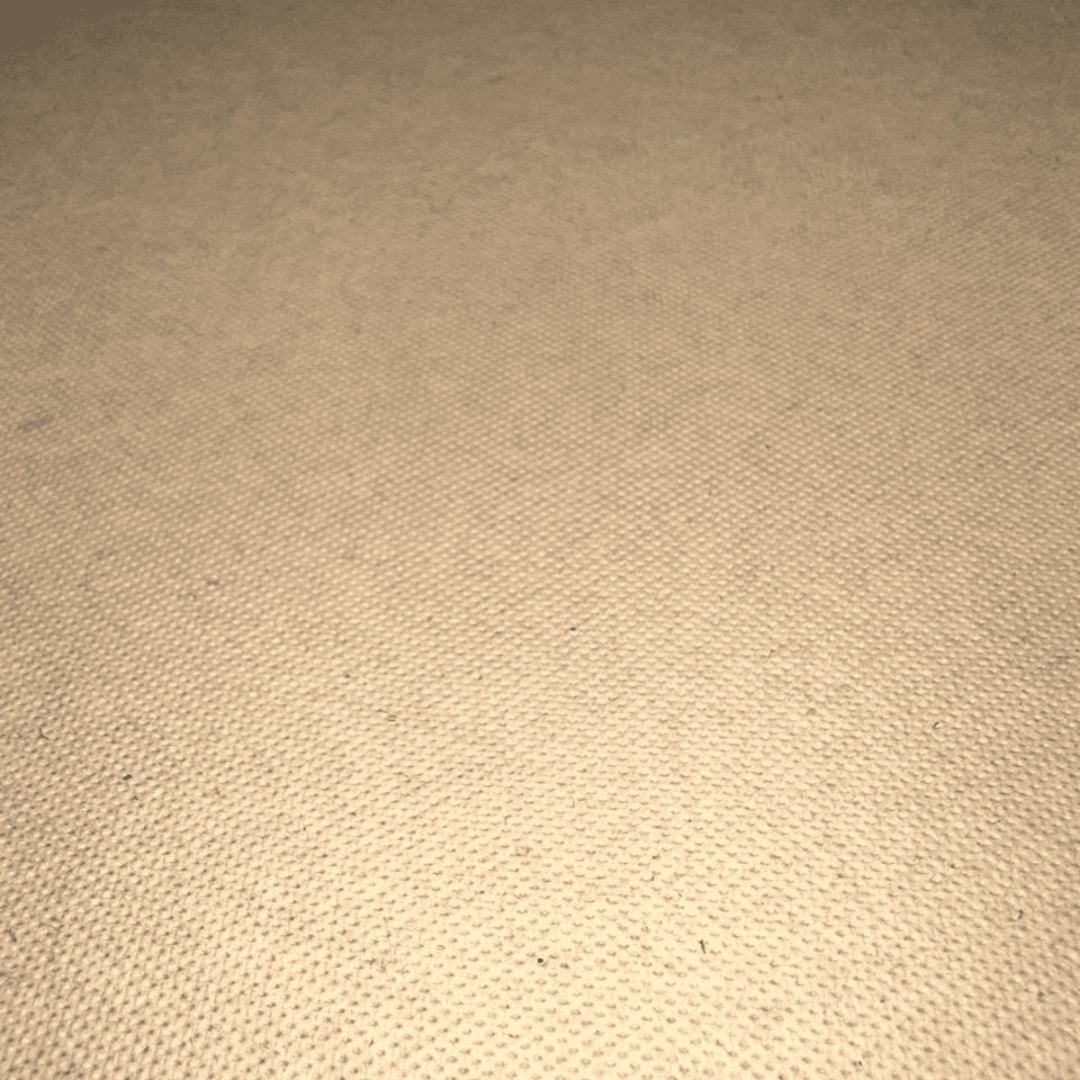

High Density Transformer Board
- Class A - 105°C
- BDV - 12kV per mm in air
- Available in sheets of 1.0 x 2000x1000mm 1.5 x 2000x1000mm 2.0 x 2000x1000mm 3.0 x 2000x1000mm

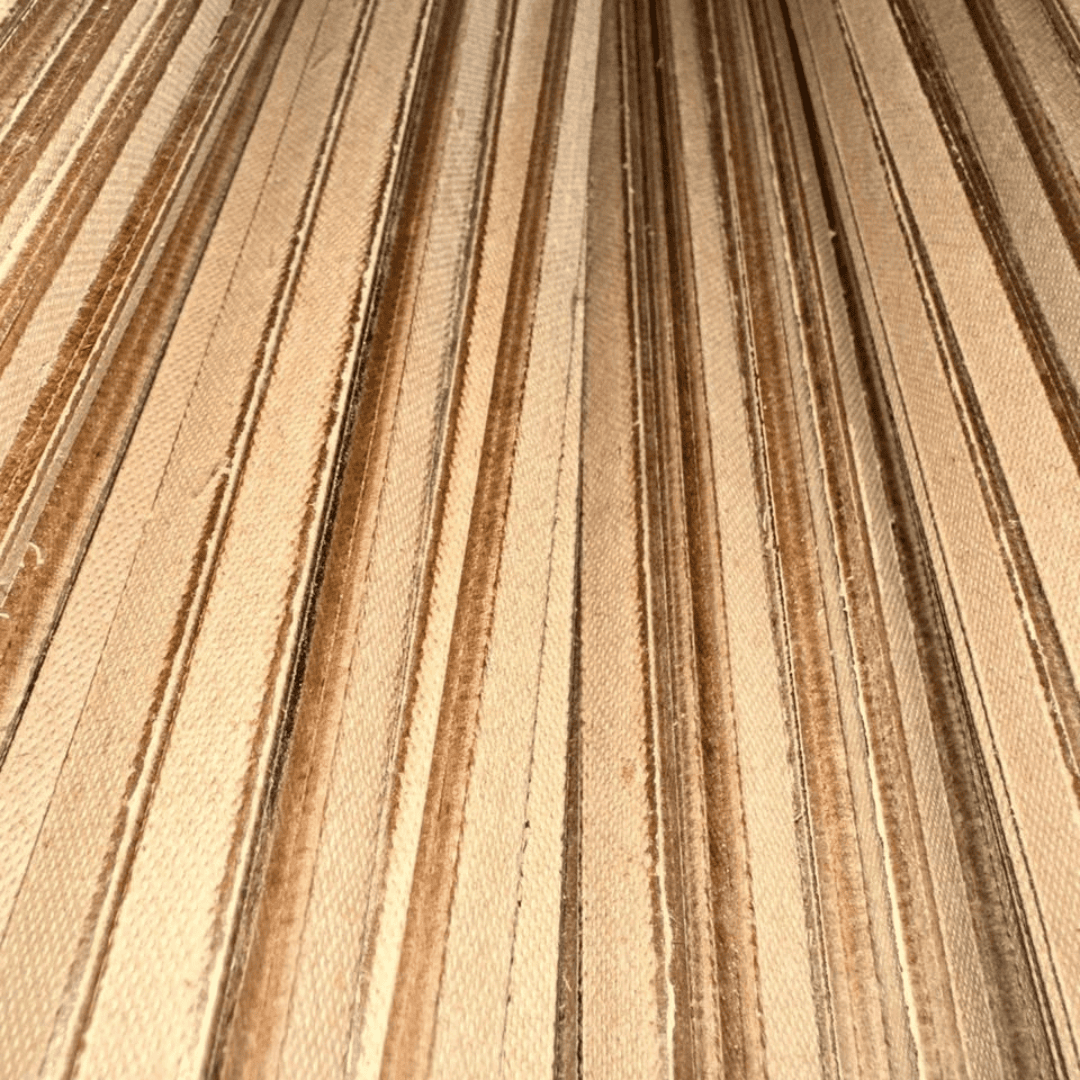

HD Transformer Strips
- Class A - 105°C
- BDV - 12kV per mm in air
- Standard sizes 3x10x2000mm 4x10x2000mm 5x10x2000mm 6x10x2000mm 8x10x2000mm
- Other sizes available on request
Cleaning Solvents

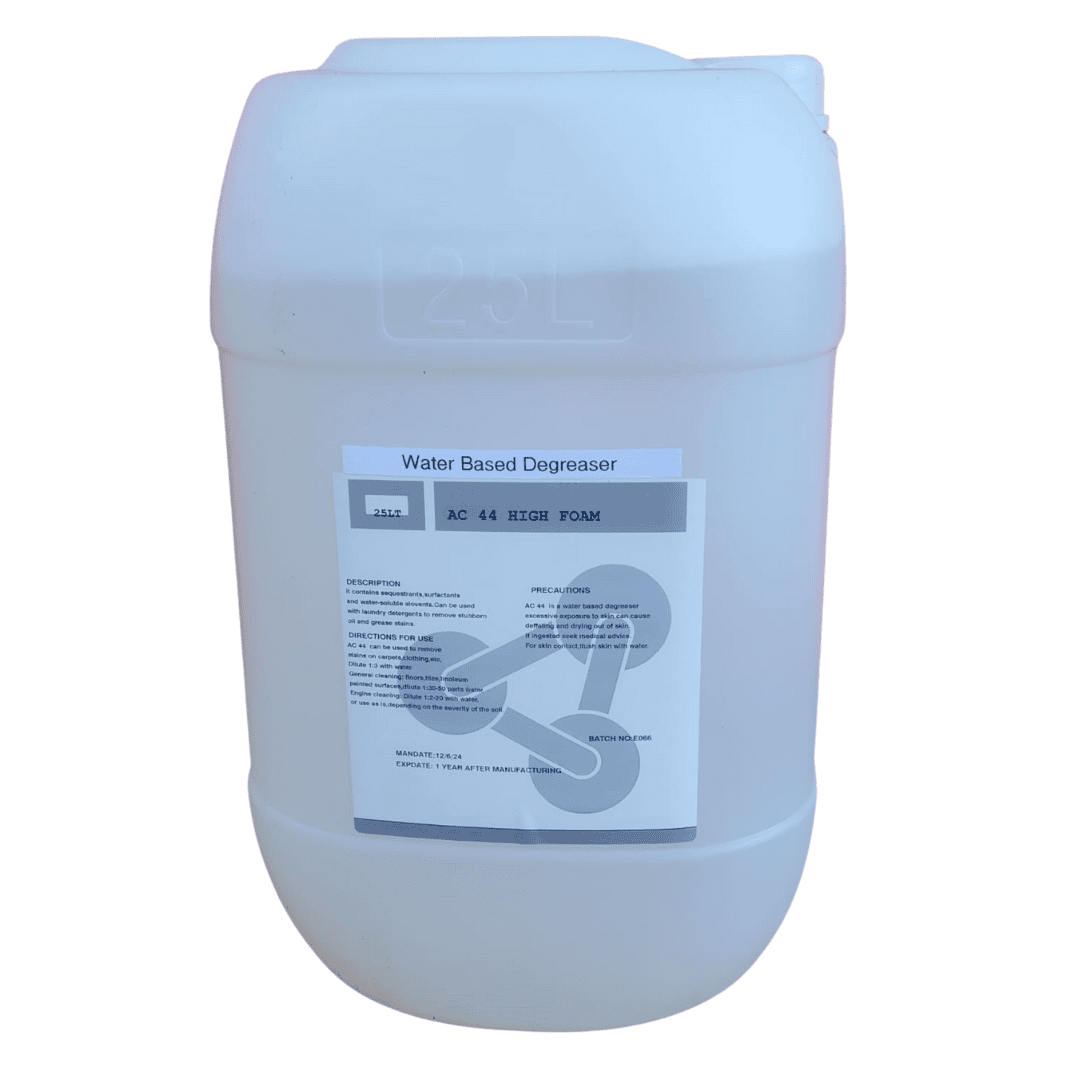

Water Based Degreaser
- Is a general purpose cleaner and degreaser, formulated for the removal of oil, grease and other soils from all surfaces, by manual application or through high-pressure cleaners.
- Available in 25-litre containers and 210-litre drums.

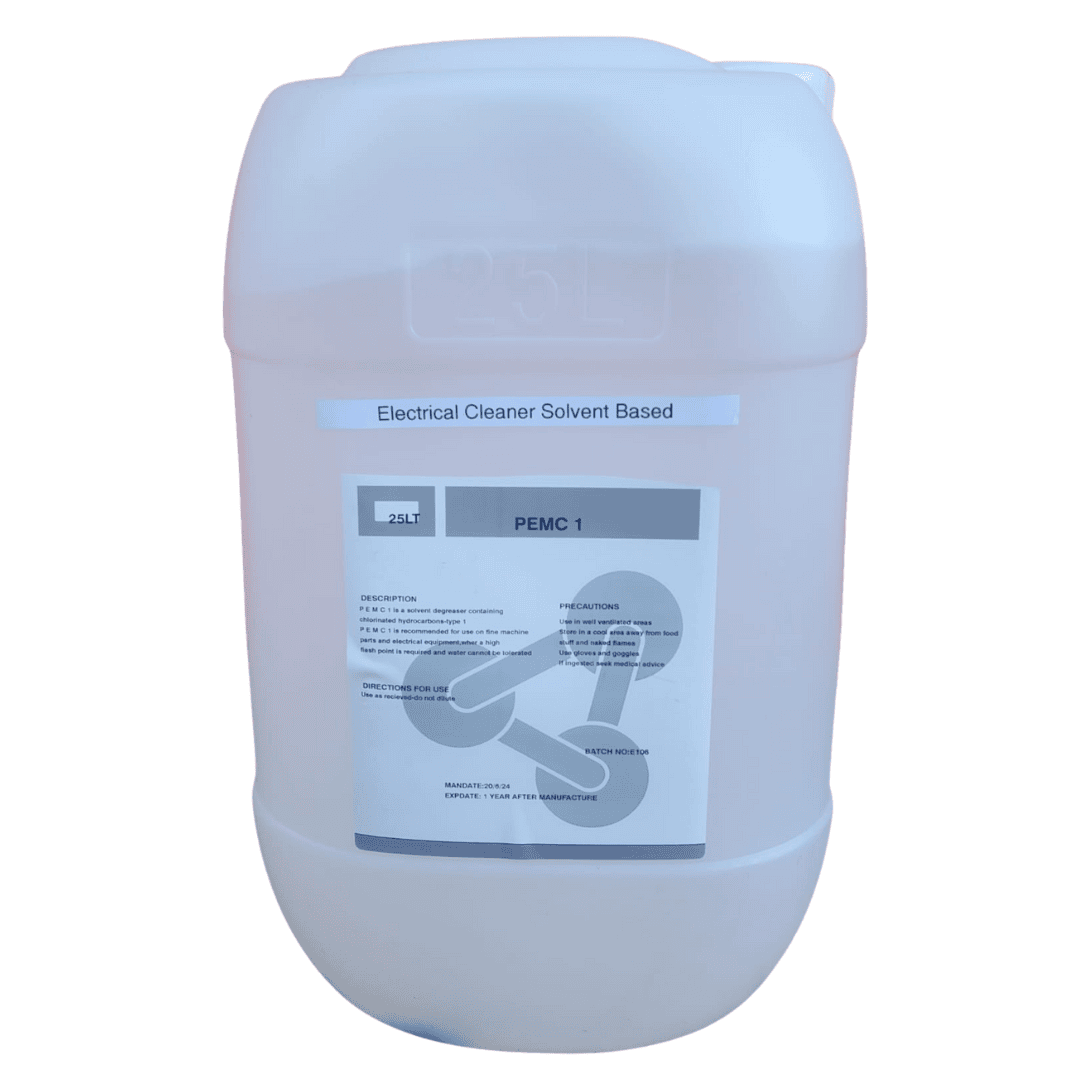

Electrical Cleaner
- Is an inhibited electrical safety solvent, with a flash point of greater than 90°C.
- Is relatively non-toxic, but should be used in a well-ventilated room.
- It is safe on all metals, but with prolonged contact, may attack some plastics.
- Available in 25 litre containers
Other Products

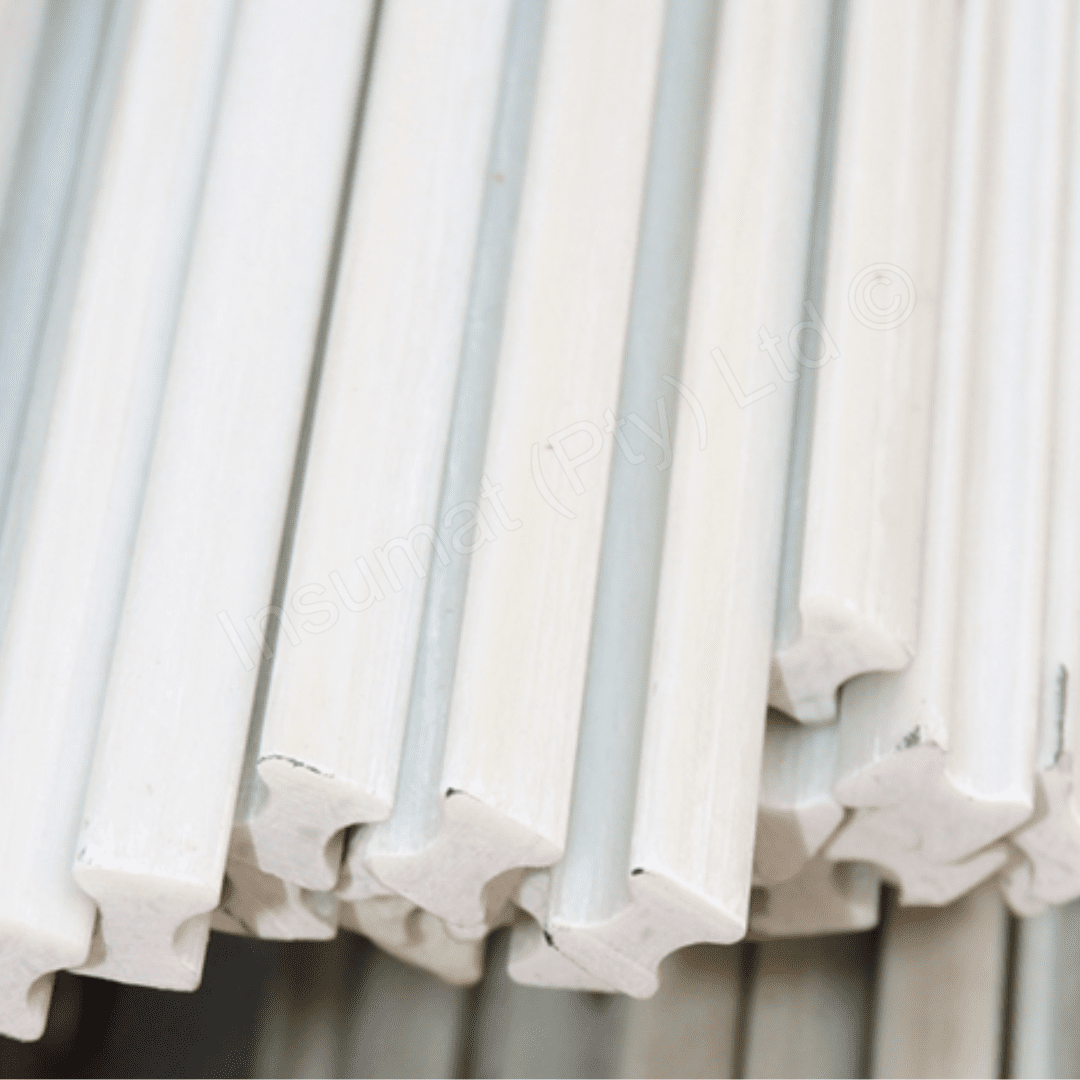

Dogbone Spacers
- Pultruded dogbones used in dry type transformers.
- Full Class H.
- Sold in a 6x8/10x12/16x20 all by 2500mm in length.
- Sold per length and all white in colour.

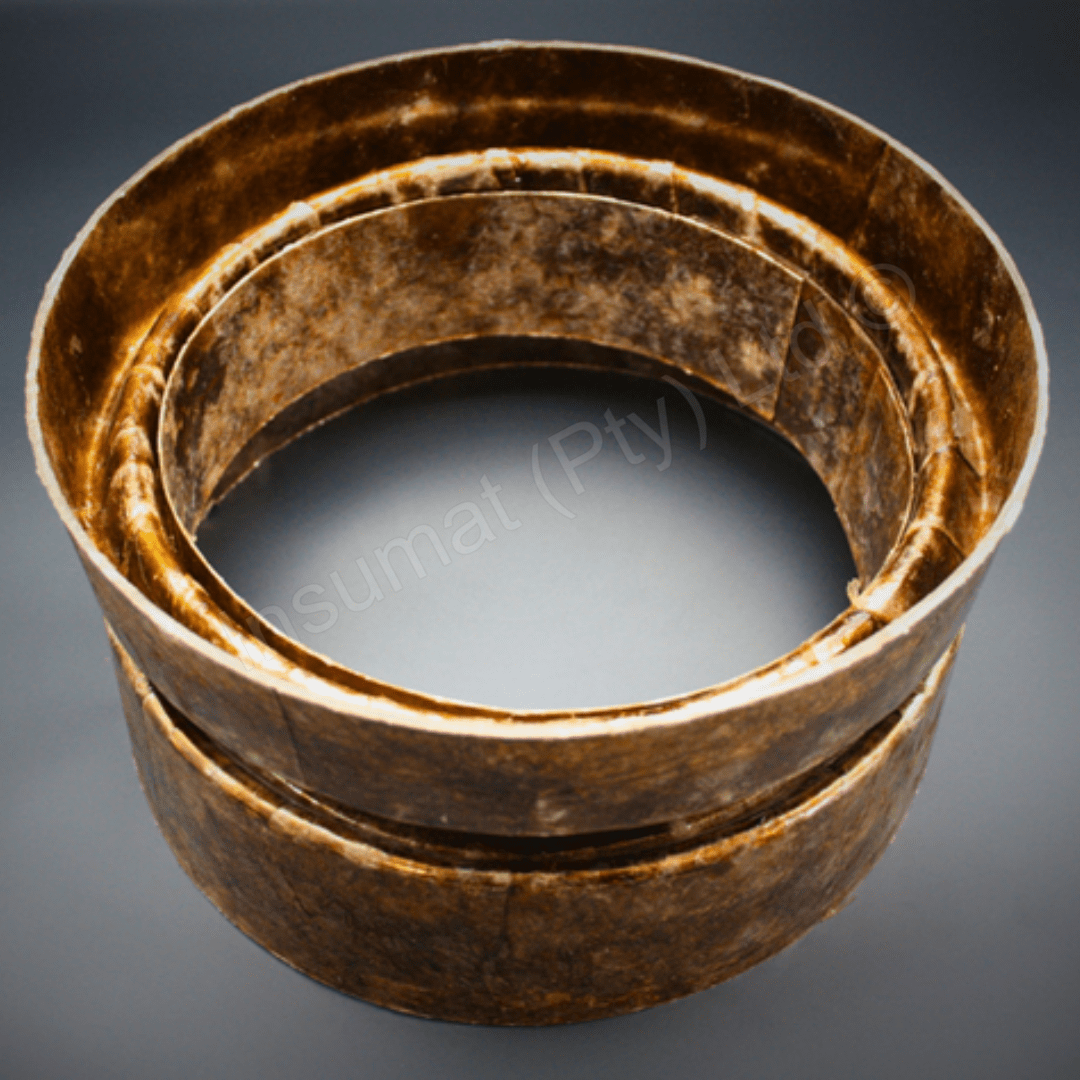

MICA V Rings
Mica V Rings can be manufactured to taylor-made requirements using the hot moulding mica that Insumat keeps in stock. The V Rings are not a stock item and only made to order. We will require either a sample or drawings for manufacture.

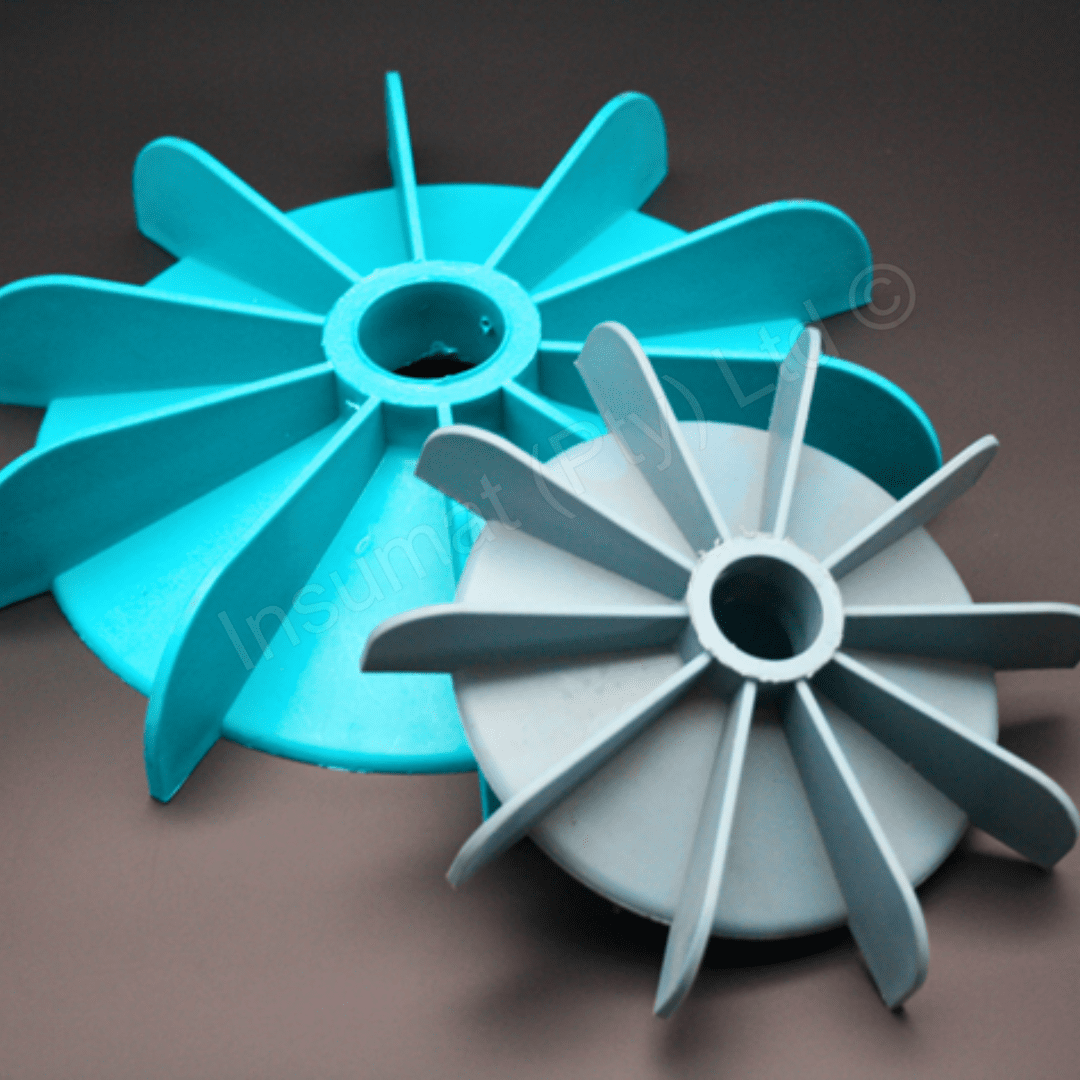

Plastic Fans
Insumat keeps a range of plastic fans ranging from D90 – D180, terminal boxes, lids and terminal blocks. Please send us any enquiries you may have.

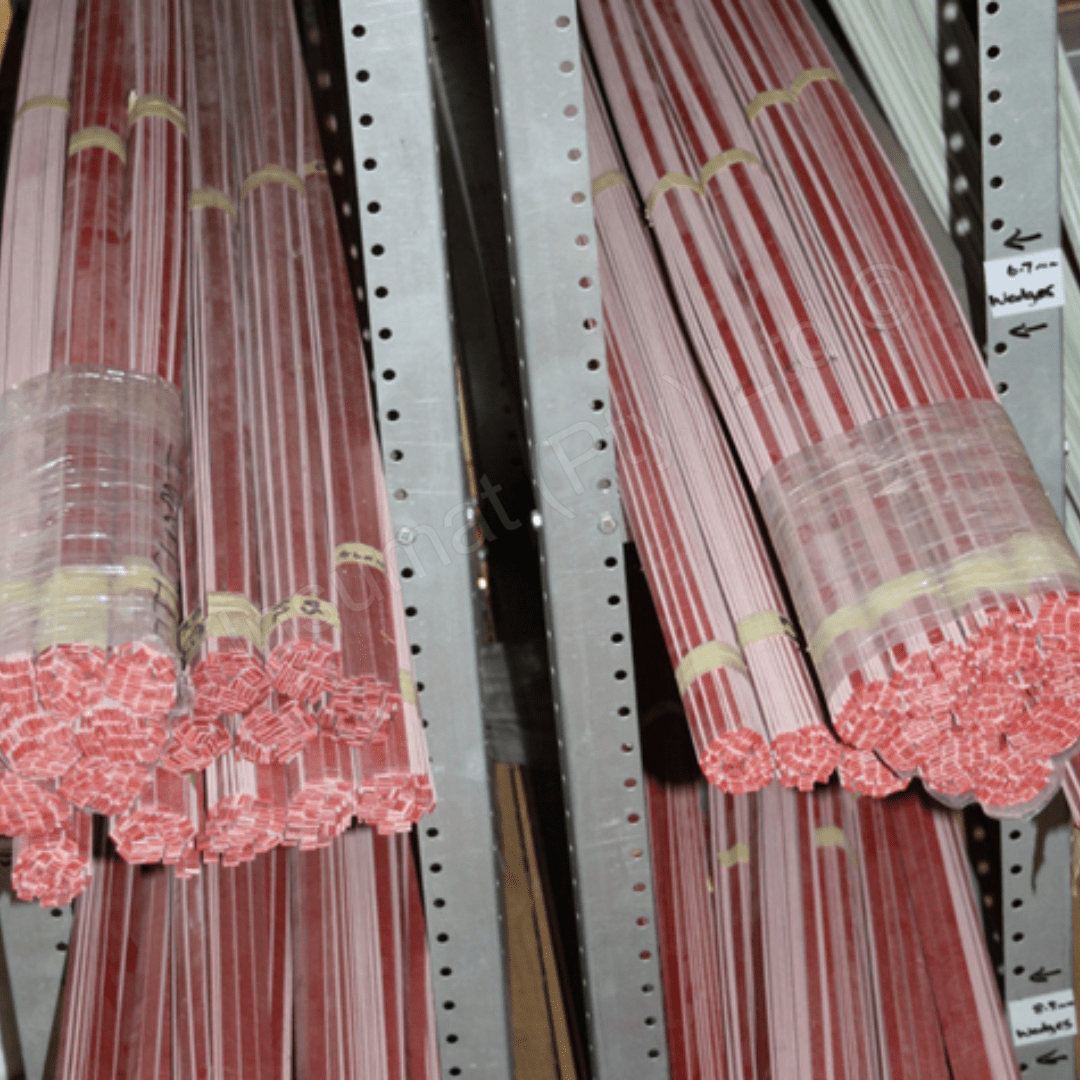

Wedges
- Insumat keeps a standard range of wedges in stock used for typical mush wound LV motor repairs.
- Thickness is 2.4x1220mm in length, thickness range from 3.5/4.5/5.5/6.7/7.5/8.5/10mm.

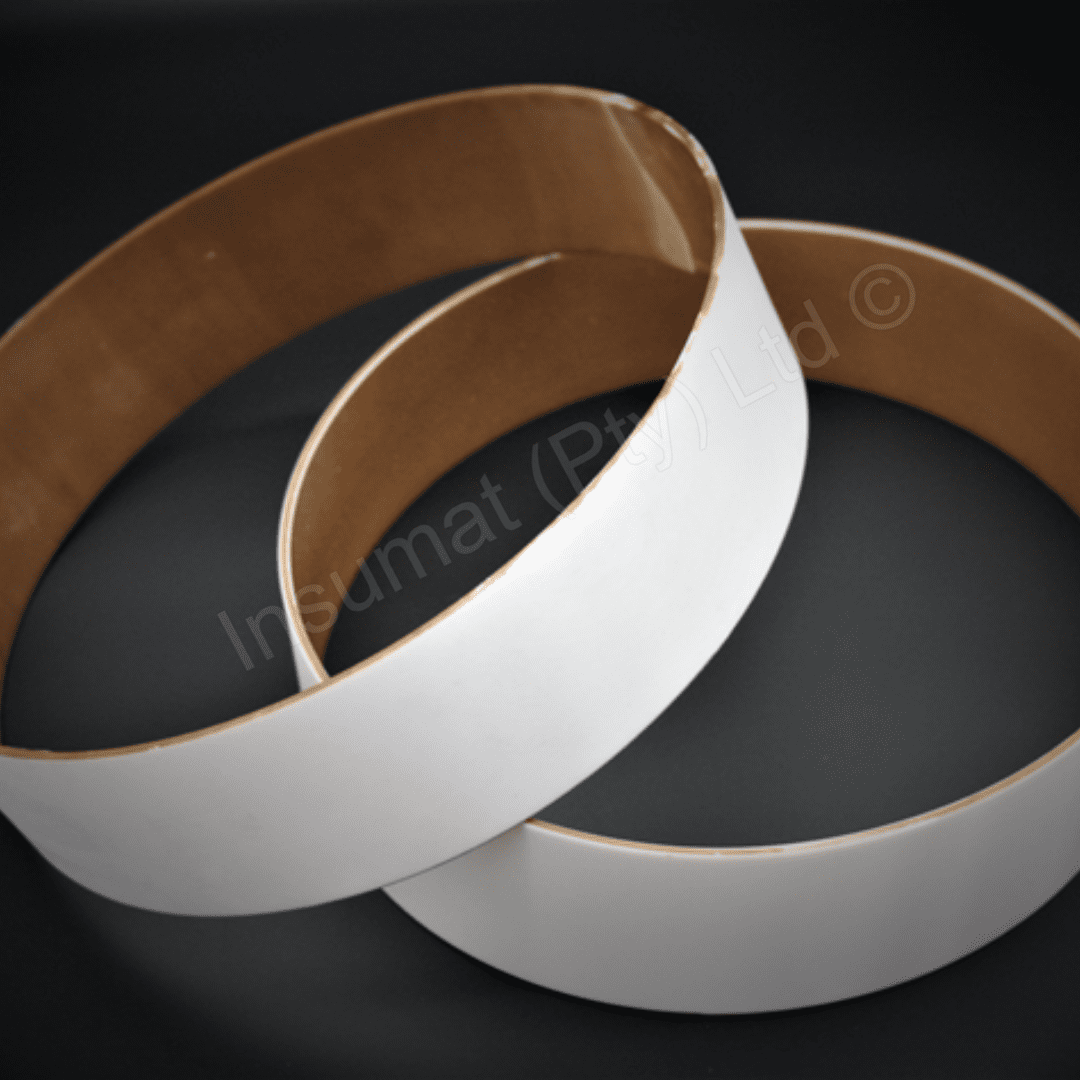

Teflon Sleeves
Insumat stocks a range of PTFE sleeves for traction motors. We keep GE761, D29, 6E, 178 (5M2) and MAMG.
Material is stored in black bags and out of direct sunlight.

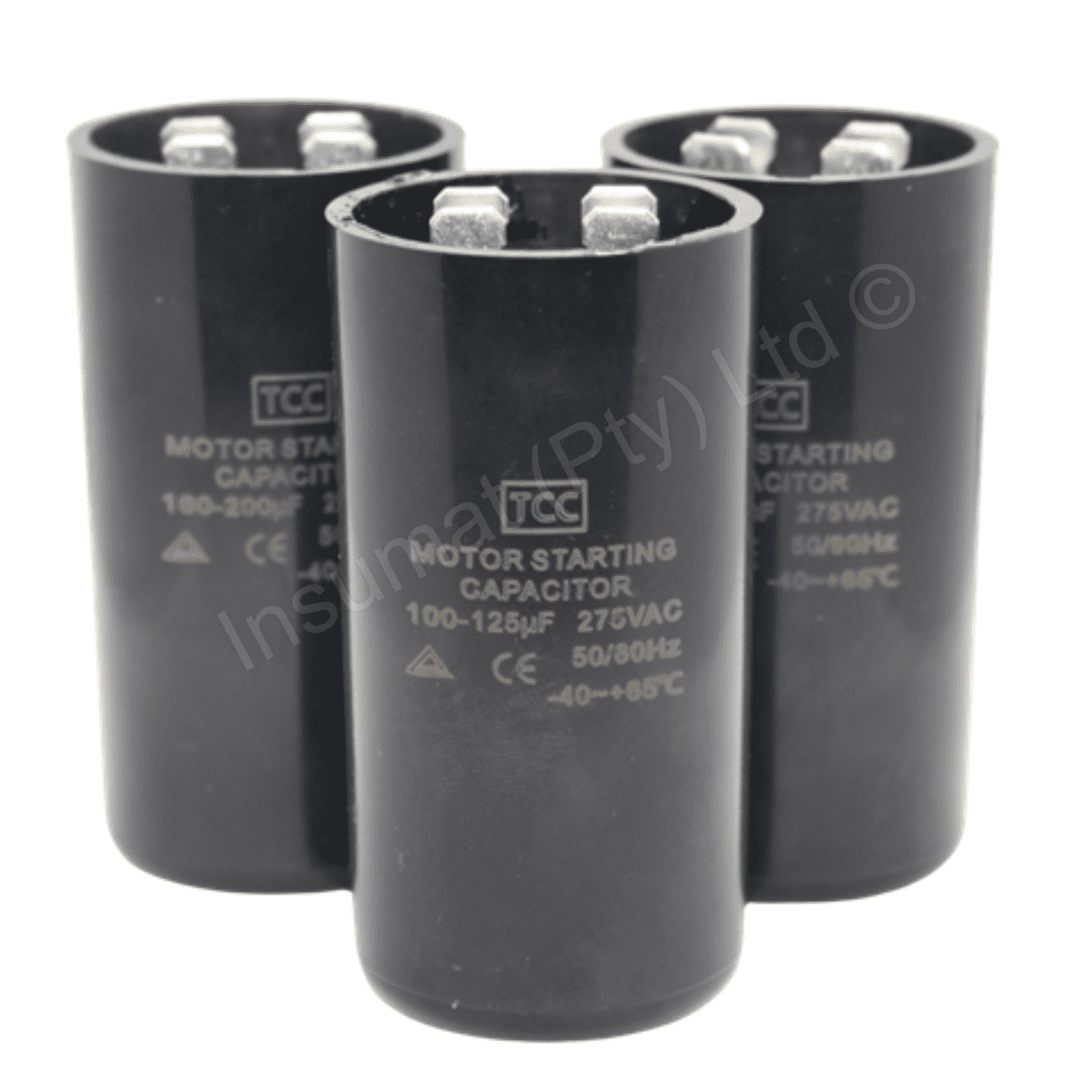

Starting Motor Capacitors
- Capacitance 64-74uF to 500uF
- 275 VAC
- 50/60Hz

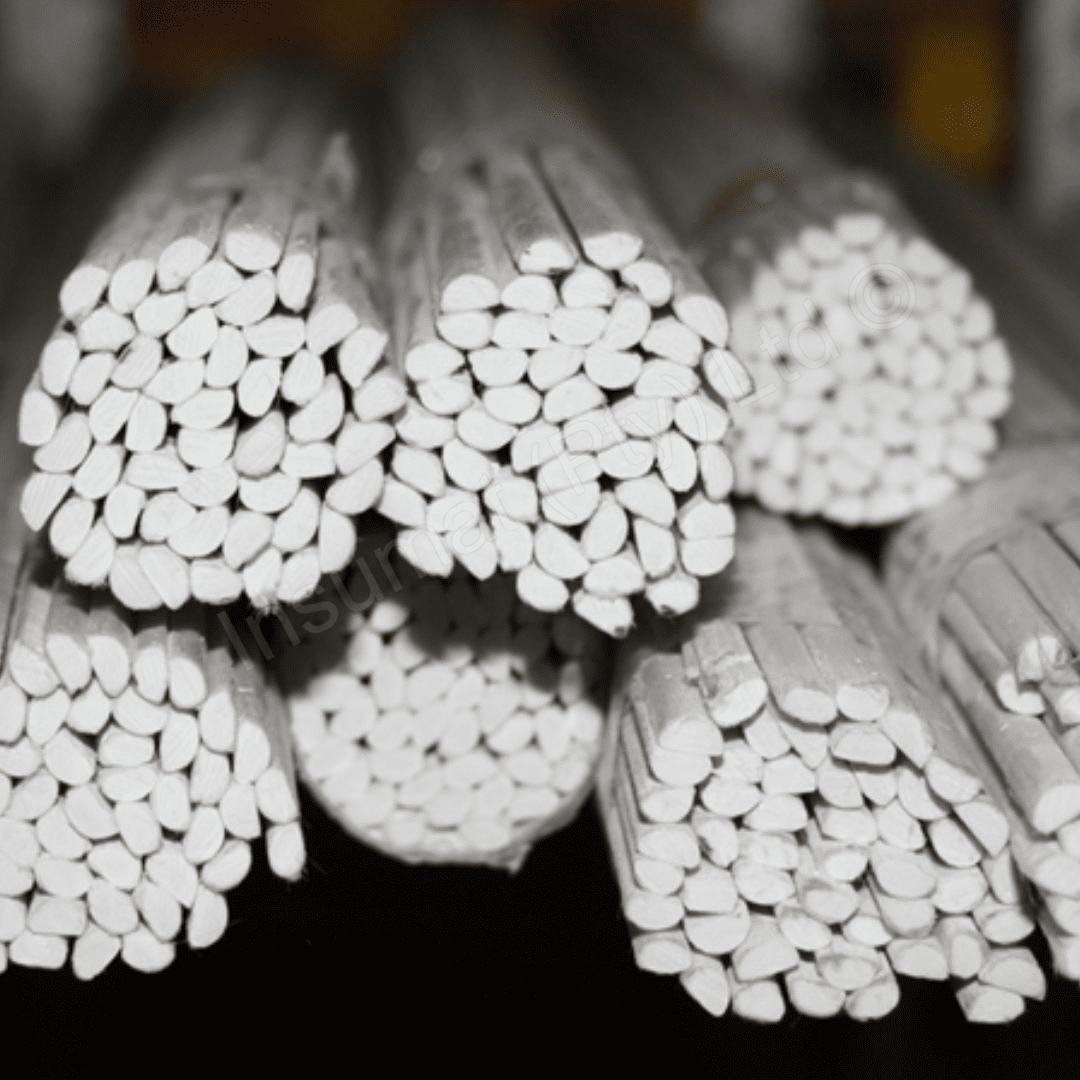

Topsticks
- Pultruded and formed into half round wedges, these are standard stock items.
- Full Class H.
- 3x1.5/4x2/5x2.5/6x3/7x3.5/8x4 are the standard sizes kept in stock.
- They are all 1000mm in length.

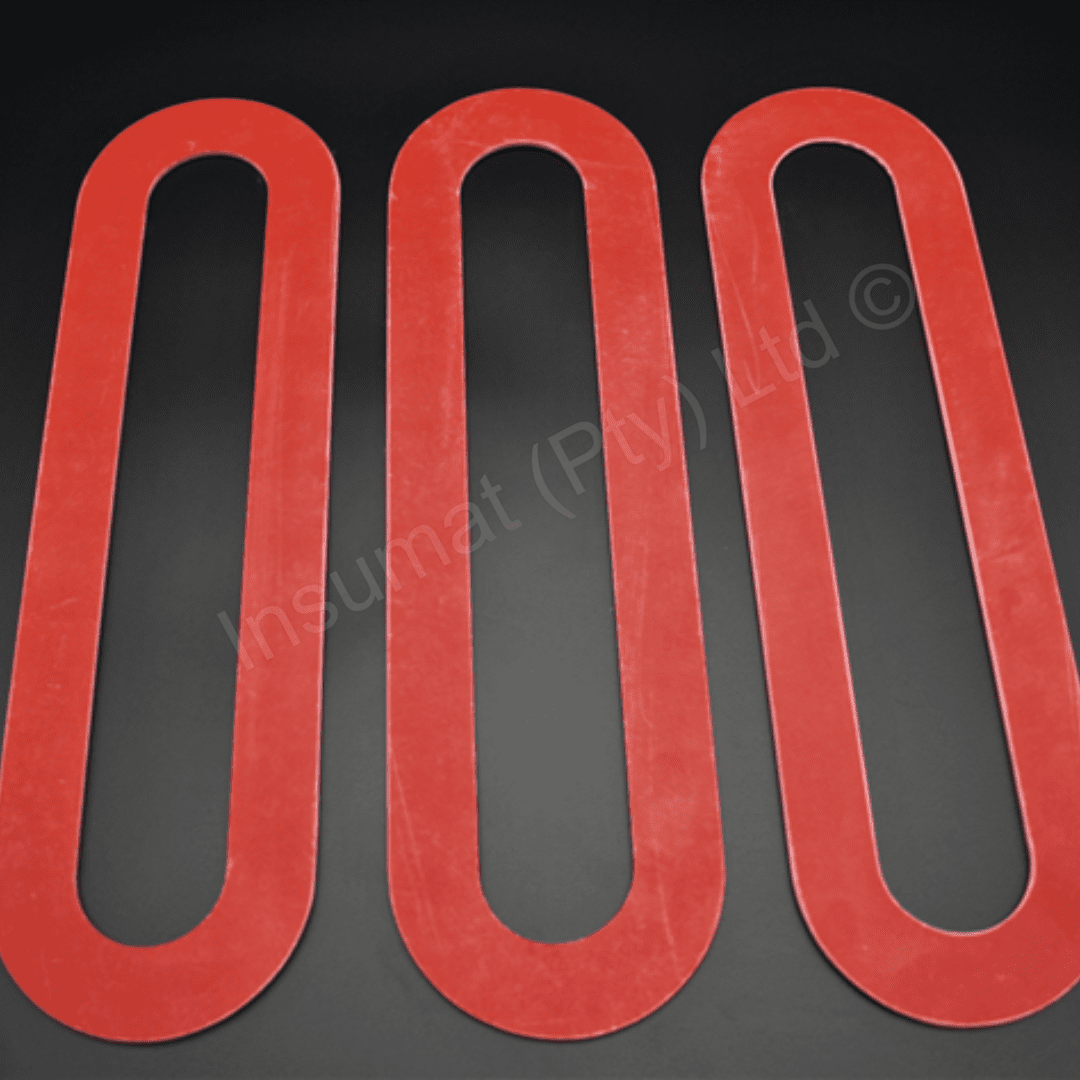

GP03 Shims
Insumat keeps stock of GPO3 Shims for Interpole and can manufacture to required size.
We keep both narrow and broad shims for 5M2 traction motors.

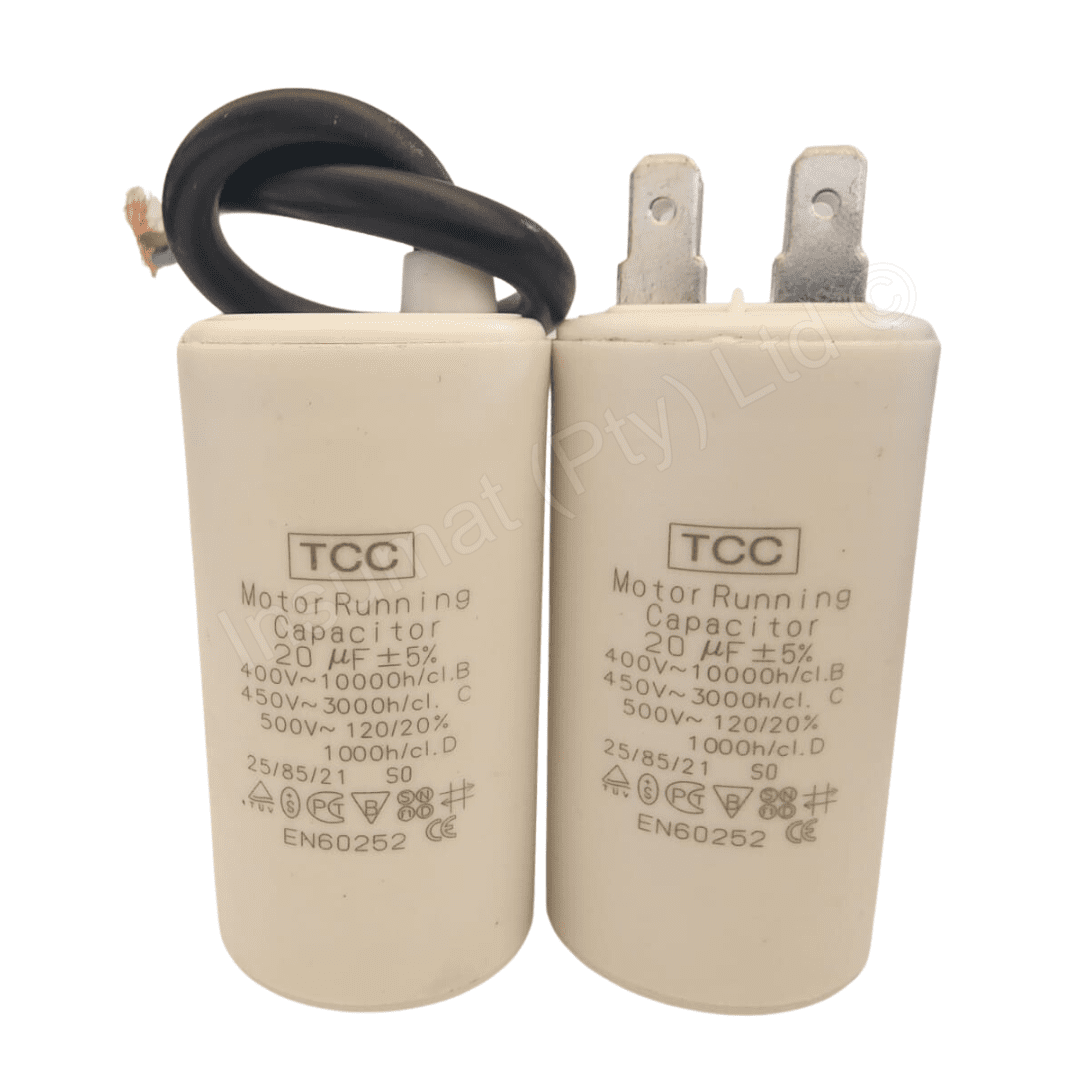

Running Motor Capacitors
- Capacitance 5uF to 80uF
- 450 VAC
- 50/60Hz
